Wind Tracker Controller PCTC Series 1.5kW-100kW

GREEF's PCTC Series Wind Tracker Controller (1KW-100KW) is an intelligent core component specifically designed for modern wind energy systems. It seamlessly integrates with mainstream photovoltaic inverters on the market, simultaneously addressing the cost and certification challenges associated with grid-connected inverters for small wind turbines. Furthermore, it incorporates advanced monitoring, protection, and remote management capabilities. Through precise speed-power curve control, we ensure efficient and stable wind power generation. Simultaneously, innovative noise control technology enables harmonious coexistence with the environment.

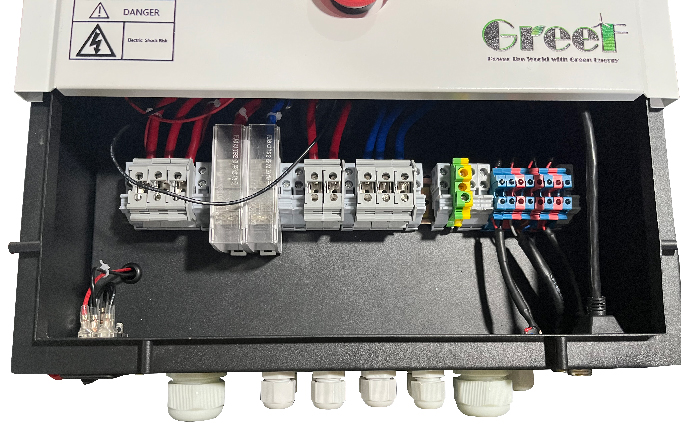

product details

Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW		GT-PCTC-3KW		GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW		3KW		5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V		AC220V-380V		AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥400dc		≥400dc		≥400dc		≥700dc
Wind turbine 3-phase dump load voltage	450±5Vdc	450±5Vdc		450±5Vdc		750±5Vdc
3-phase dump load time-lapse	12-20 min	12-20 min		12-20 min		12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
Size of the controller (mm)	500395270	500395270		500395270		500395270
Controller Weight	20Kg	20Kg		22Kg		22Kg
Dump load Size (mm)	620215190	620215190		620215190		620215190
Dump load Weight	14Kg	14Kg		14Kg		30Kg

Type	GT-PCTC-10KW	GT-PCTC-20KW		GT-PCTC-30KW		GT-PCTC-50KW	GT-PCTC-100KW
Wind turbine rated power	10KW	20KW		30KW		50KW	100KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc		≥700dc		≥700dc	≥700dc	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc		750±5Vdc		750±5Vdc	750±5Vdc	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min		12-20 min		12-20 min	12-20 min	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
Size of the controller (mm)	550395270		6005001200		6005001200	930580430mm	11006001800
Controller Weight	25Kg		66Kg		68Kg	50KG	406KG
Dump load Size (mm)	690520270		690530520		710890590	710890590	Dumpload built-in
Dump load Weight	45Kg		55Kg		55Kg	55Kg	Dumpload built-in

Leading Features

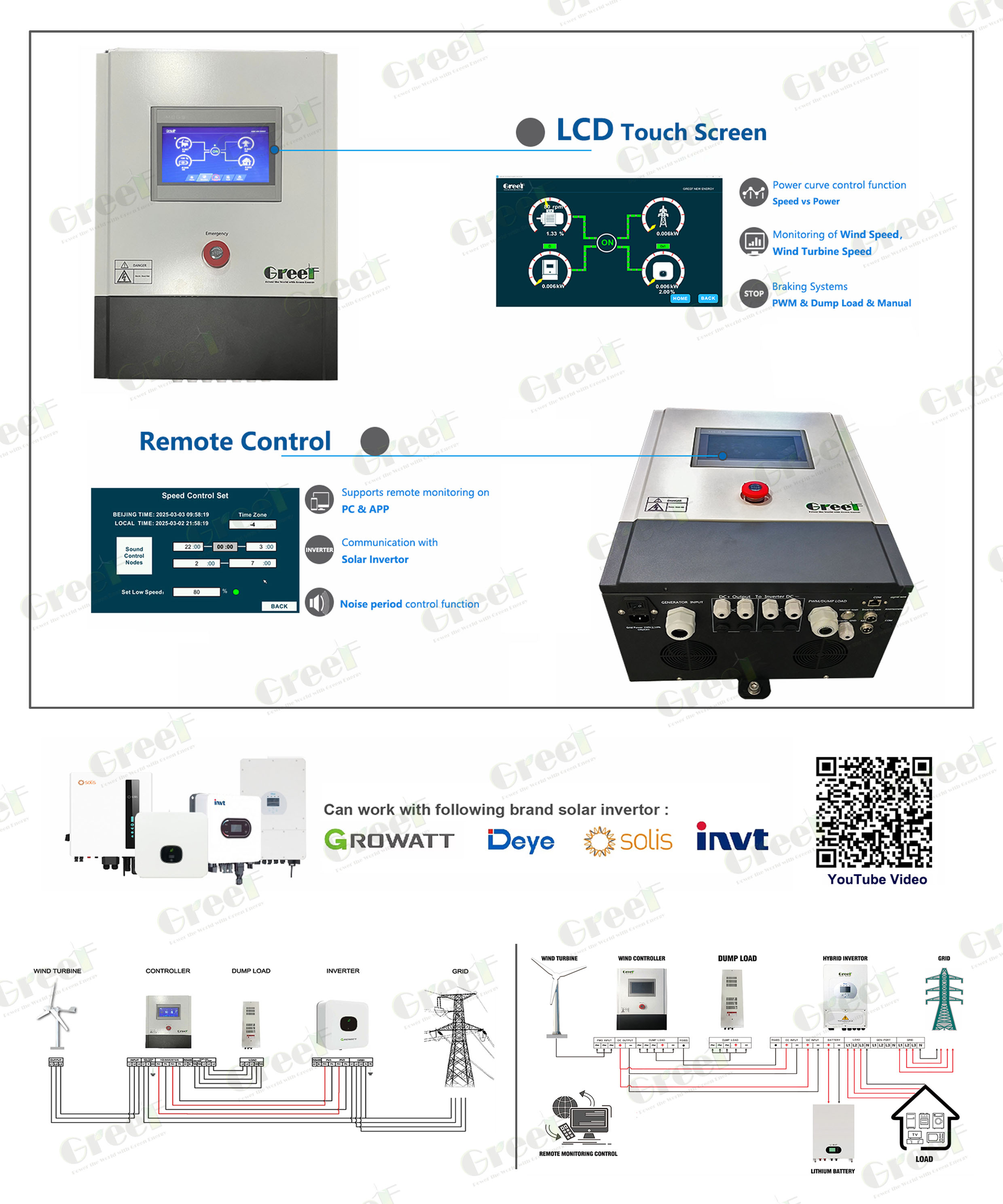

untitled-1

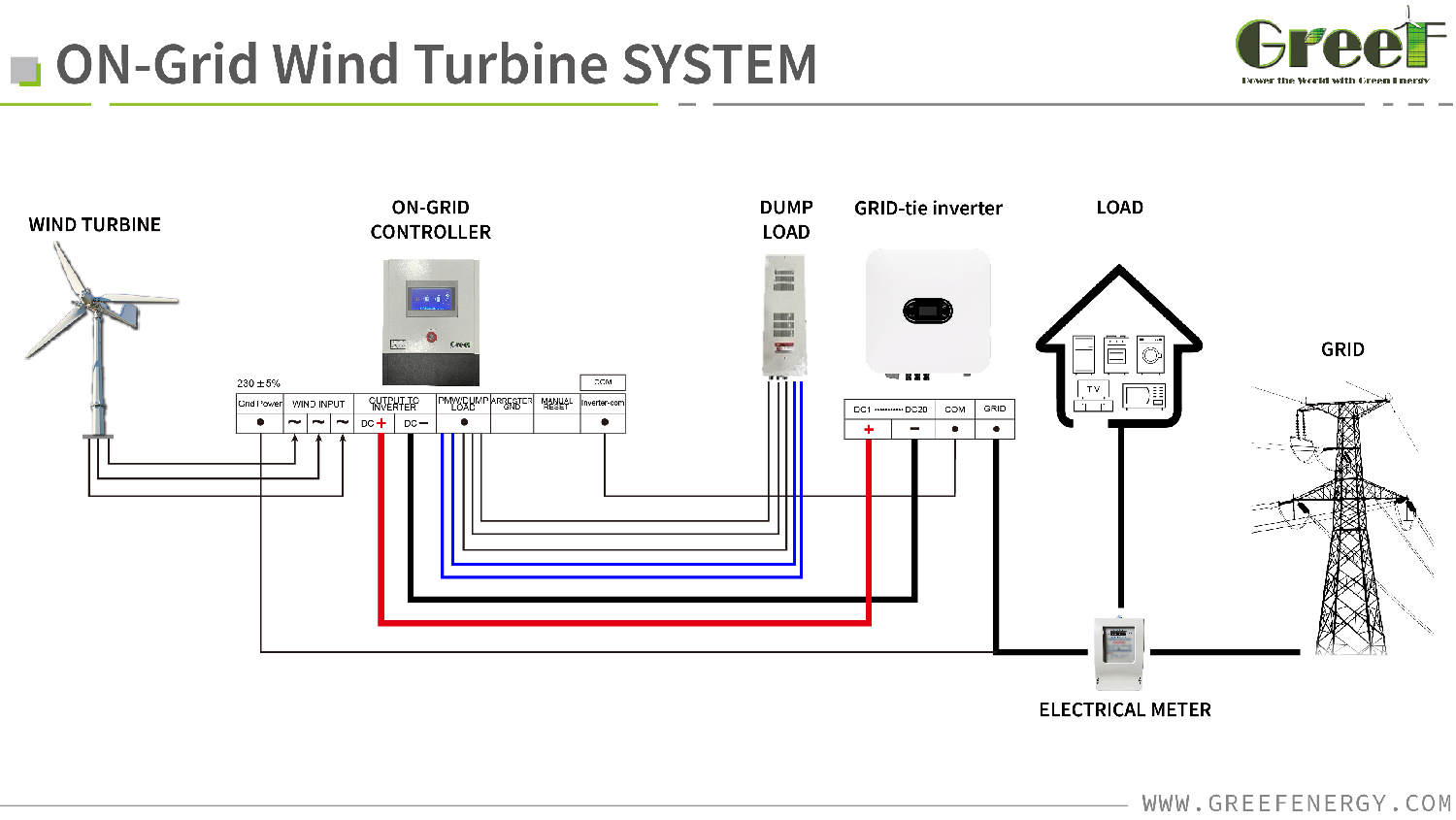

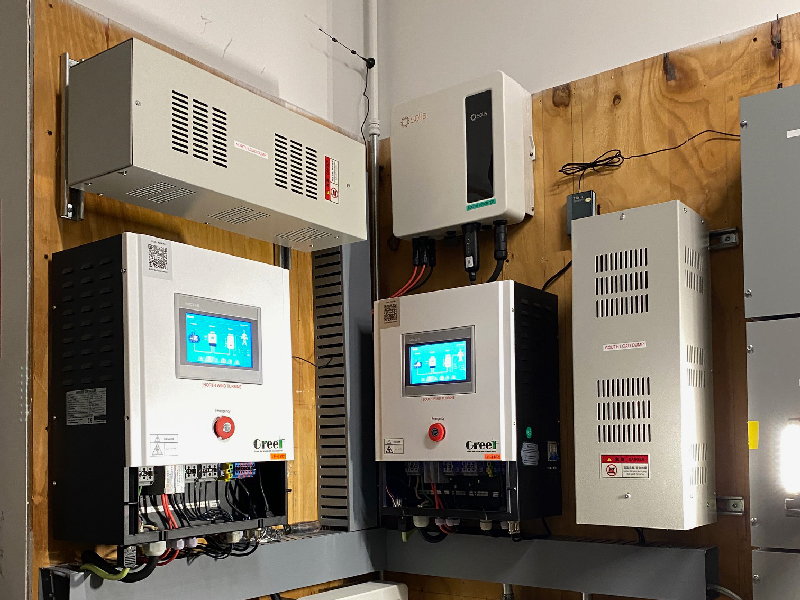

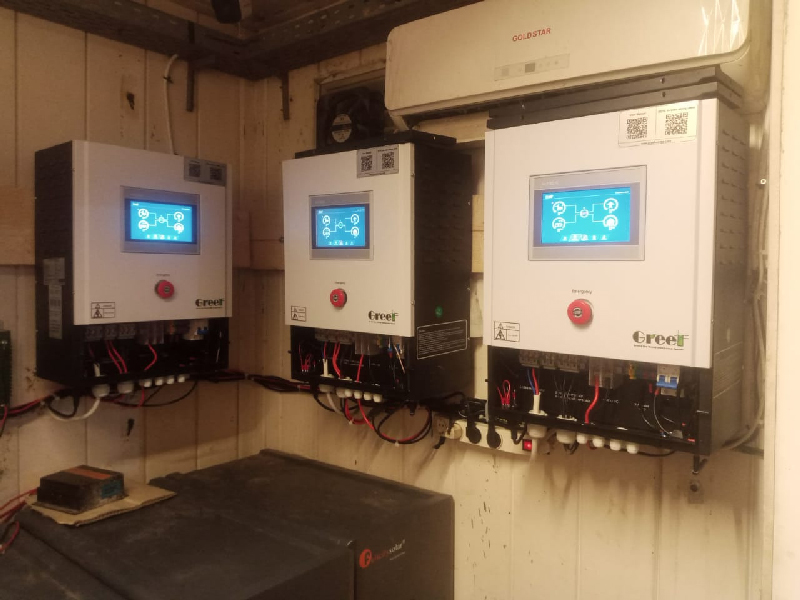

System Solution

FAQS

What problem does GT-PCTC controller solve ?

Compared with PV grid-tied inverters, small wind turbine grid-tied inverters market supply have following problem :

◐ Few professional small wind turbine grid-tied invertor factories

◐ Small wind turbine grid-tied invertors are several times more expensive than PV inverters

◐ Quality is unstable， no after-sale service

◐ Low efficiency

◐ No grid connection certification

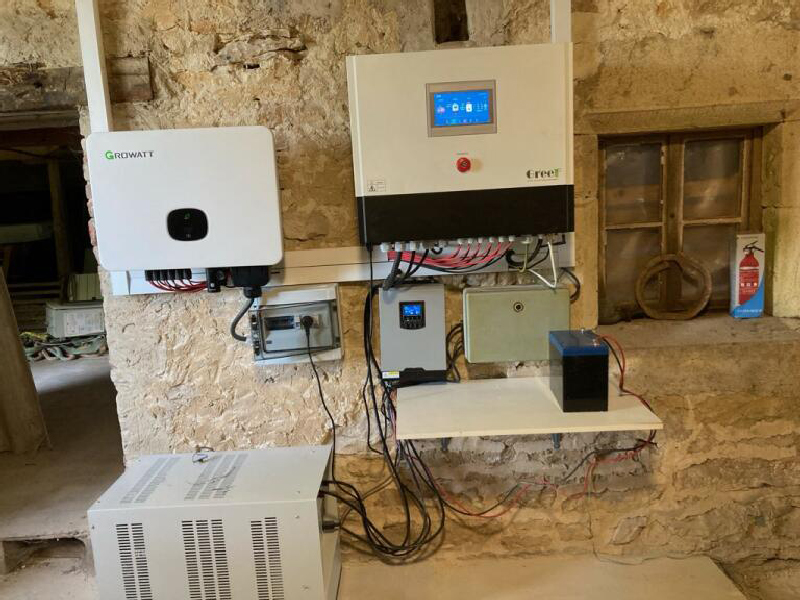

GREEF GT-PCTC series controller can works together with GROWATT,DEYE,SOLIS brand PV grid-tied inverter , track and control the grid-tied power all the time.User can setting the wind turbine working power curve by themselves on the screen according to the wind turbine performance . it can Inspection the generator speed and according to the setting power curve speed VS power to let the invertor working accordingly

How does the protection systems working?

PWM Constant voltage + Three-phase dump load brake

①PWM constant voltage is control the wind turbine output not exceed 120% of the wind turbine rated power .

②If exceeding of PWM’s capacity, it means the wind turbine is over speed , then the three-phase dump load system will brake the wind turbine automatically & immediately.After10- 20 minutes, the brake will release , then the wind turbine will re-start to generation power.

③When meet strong wind , the controller can conduct constant voltage output to ensure the inverter safety running.

④When grid-tied inverter disconnected, the controller can conduct constant voltage output and wait for inverter resumption.

⑤When the grid is cut off, the three-phase dump load will automatically start to brake the wind turbine and let the inverter stop output to grid. When the grid recover, the controller will also recover the wind turbine.

How about other functions ?

❶Surge protector: Limit the transient over-voltage that breaks into the wind turbine's power line to a voltage range that the equipment can withstand, or discharge a powerful lightning current into the ground to protect the equipment from lightning strikes.

❷Emergency stop switch: in case of emergency, press down the emergency stop button in the front panel to cut off all power supply of the controller and the wind turbine will immediately brake（three-phase dump load）.

❸Manual Brake switch: To using this switch, the wind turbine will brake all the time .(three-phase dump load).

What other optional function?

❶Modbus Communication protocol is available. Convenient to carry out the secondary development.

❷RS485 is available. Adjusting the technical specification via RS485

❸Support WIFI and LAN remote monitoring and control. Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history working sate. Both Android and OS are compatible in Mobile.
