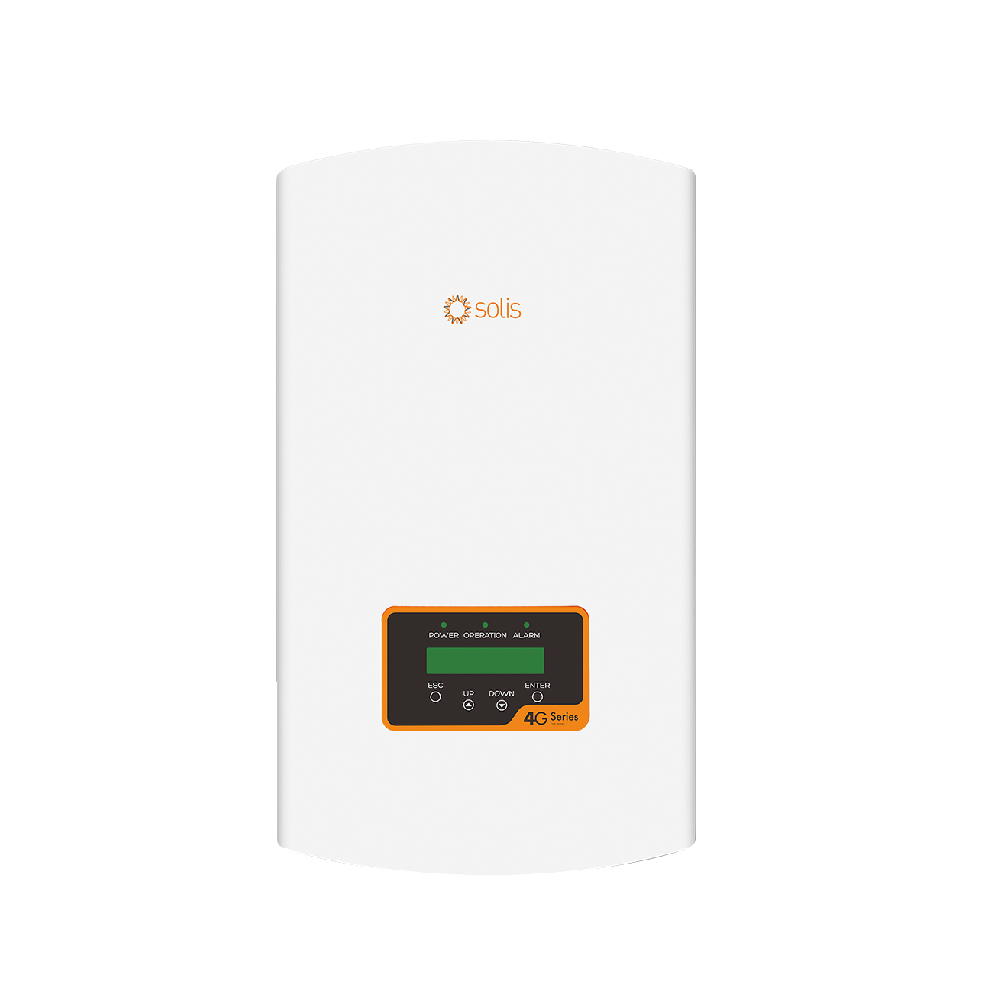

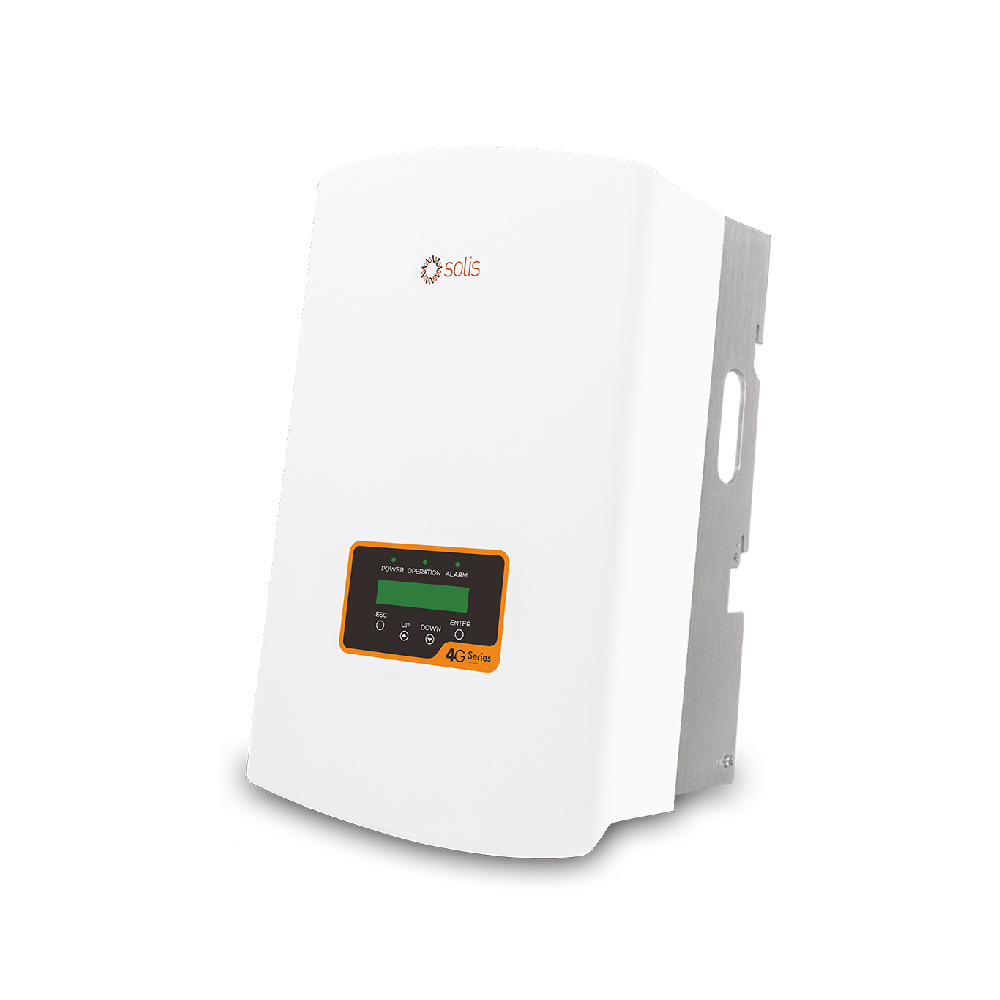

Single Phase Low Voltage Energy Storage Inverter
Leading Feature
1. Automatic UPS switching
2. Supports Peak Shaving Mode
3. Integrated 2 MPPTs for multiple array orientations
4. Industry leading 125A/6kW max charge/discharge rating
5. Compatible with multiple brands of lithium battery models
6. Pre-made Battery, Meter and CAN cabling to reduce installation time
7. Increased battery protection and operation features to extend battery life
8. Supports 1ph and 3ph flexible connection on both the Grid and Backup Port
Product Parameter(S6-EH1P(3-6)K-L-EU)
| Models |
3K |
3.6K |
4.6K |
5K |
6K |
| MPPT voltage range |
90 - 520 V |
||||
| Rated voltage |
330 V |
||||
| Battery type |
Li-ion / Lead-acid |
||||
| Battery voltage range |
42 - 58 V |
||||
| Battery capacity |
50 - 2000 Ah |
||||
| Rated output power |
3 kW |
3.6 kW |
4.6 kW |
5 kW |
6 kW |
| Rated grid output current |
13.6 A / 13 A |
16.4 A / 15.7 A |
20.9 A / 20 A |
22.7 A / 21.7 A |
27.3 A / 26.1 A |
| Rated grid voltage |
220 V / 230 V |
||||
| Rated grid frequency |
50 Hz / 60 Hz |
||||
| Input voltage range |
187 - 253 V |
||||
| Ingress protection |
IP66 |
||||
We have higher power inverters in our company. For more detailed information please contact us!

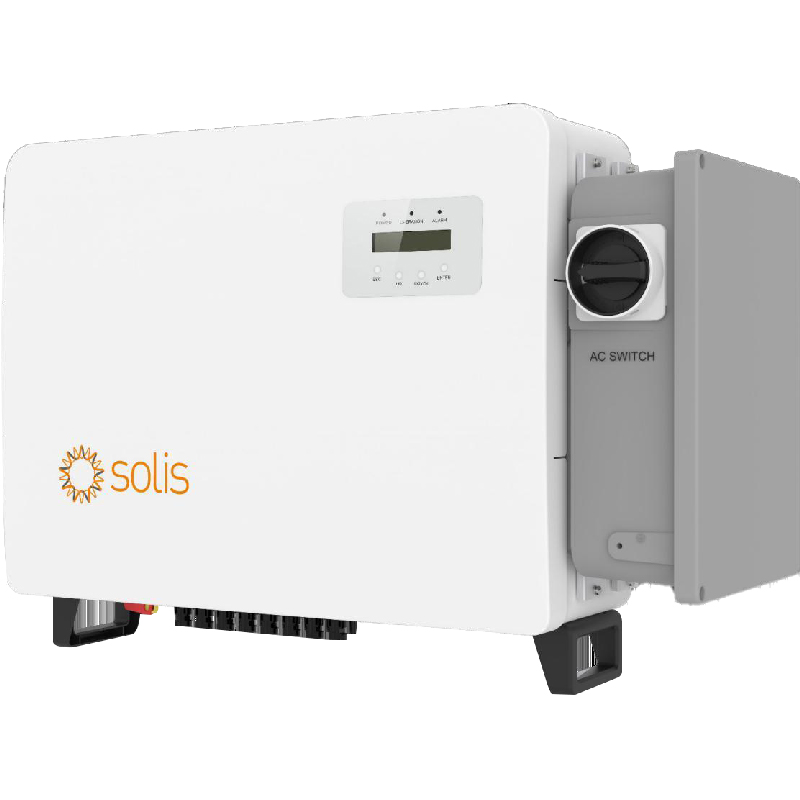

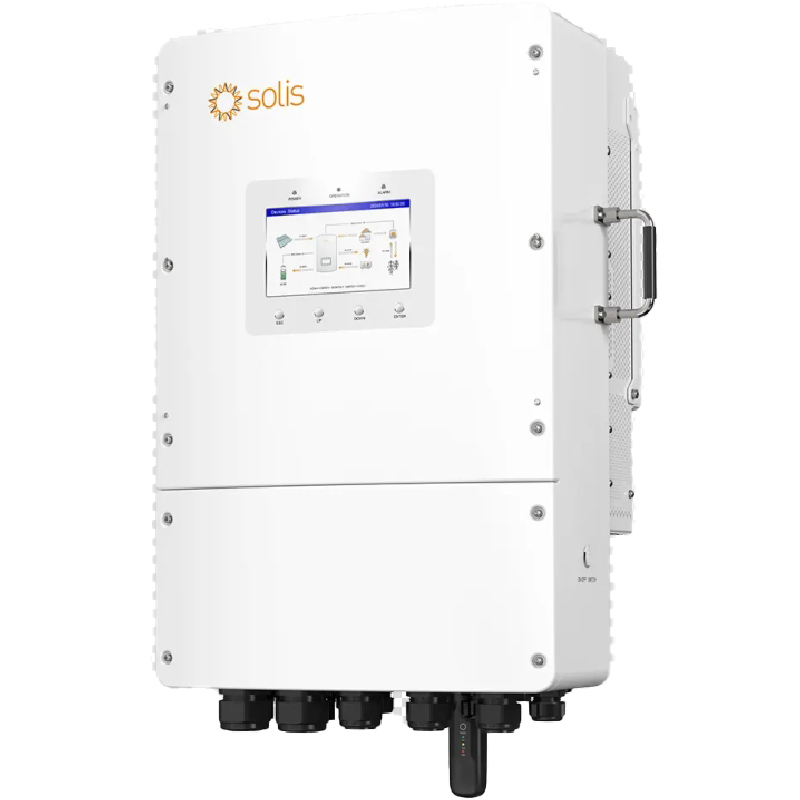

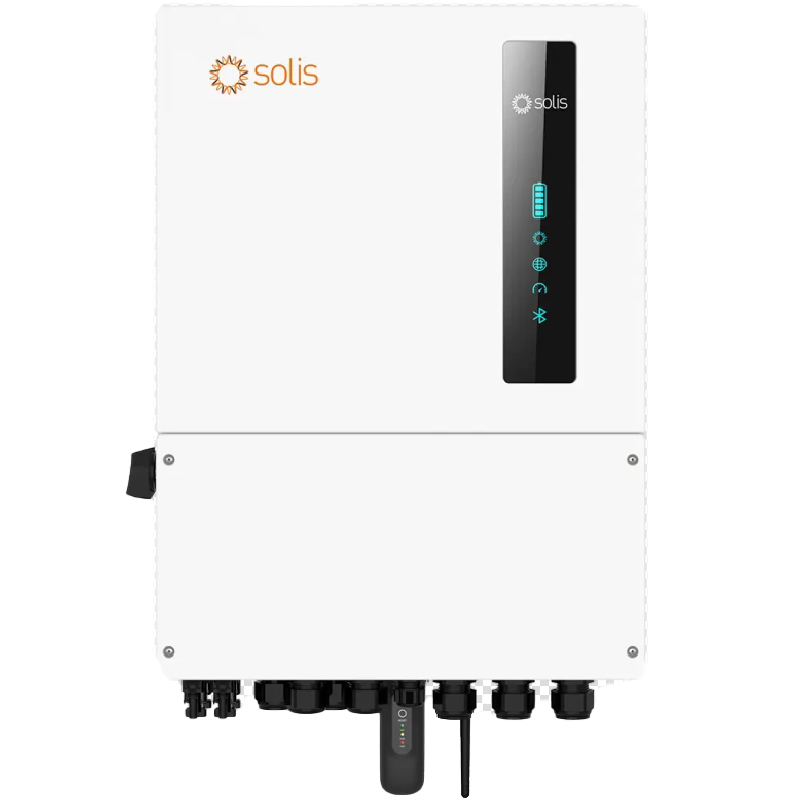

More Product
Product Details

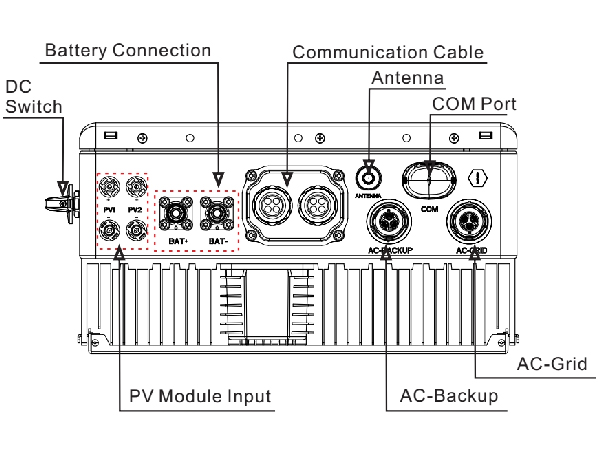

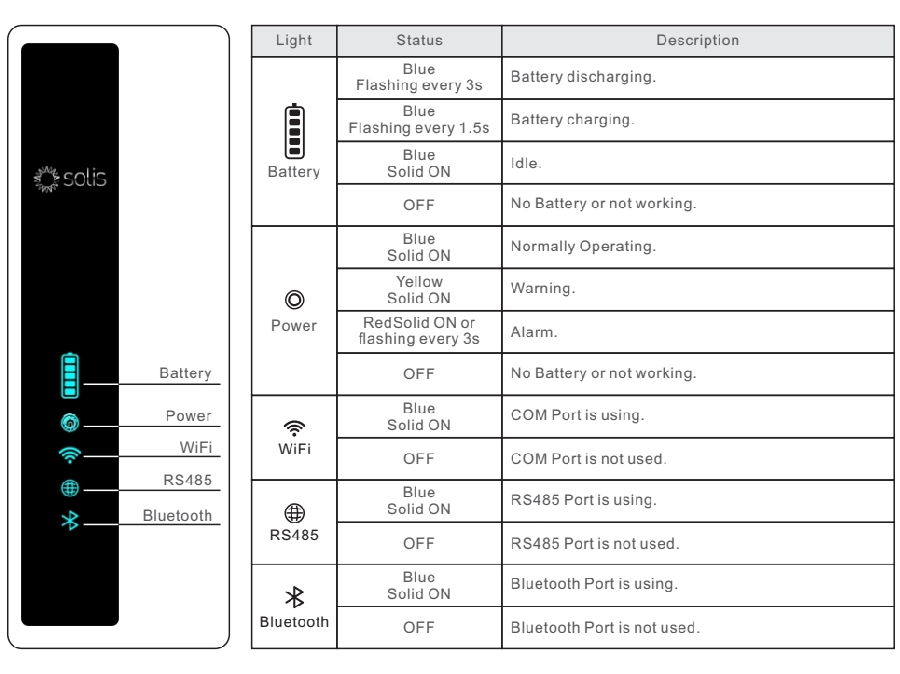

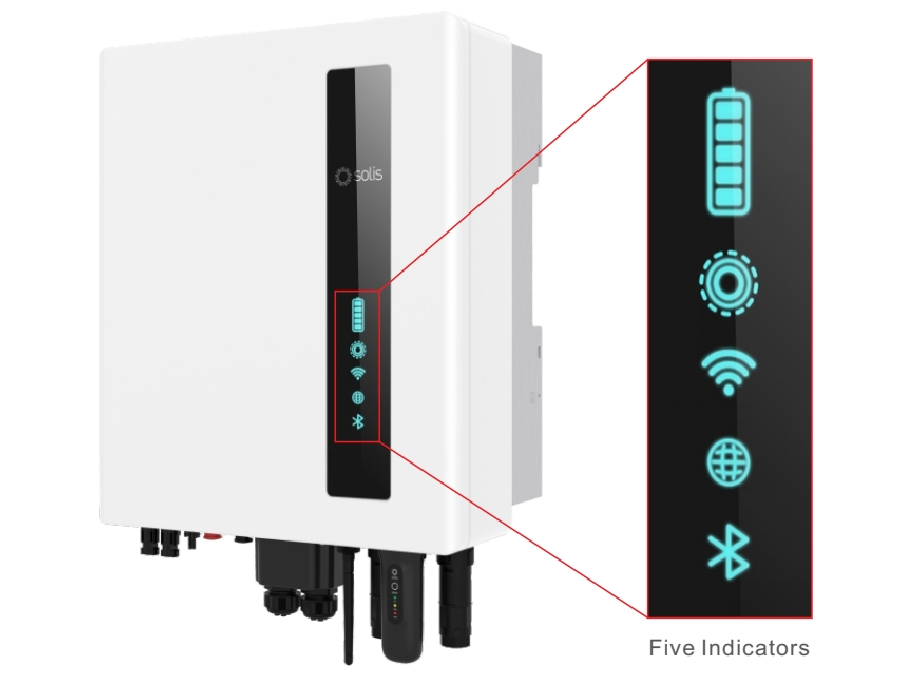

Solis Series Single phase series string inverter are green power leader in affordable small residential and commercial rooftops, adopt full digital control technology, advanced topological structure and accurate MPPT algorithm, whose efficiency higher than the industry's leading conversion is up to 97.5% at the maximum.Meanwhile adopt multiple There are five indicators on the The Solis S6-EH1P(3-6)K-L Series Inverter (Battery, Power, WiFi, Ethernet and Bluetooth) which indicate the working status of the inverter. The Bluetooth Antenna or WiFi datalogger shall be installed at the Antenna/COM port of the hybrid inverter before local debugging.

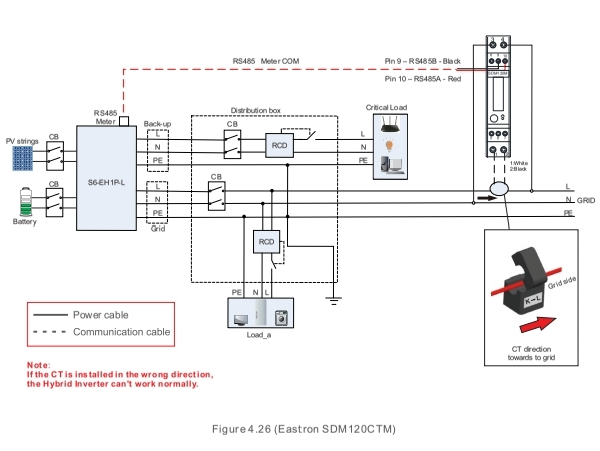

System Diagram
We can make customized solar generation system solutions according to your requirements.
Since the system can be customized, the price will be different depending on the equipment, if you need specific parameters, please contact us directly.
