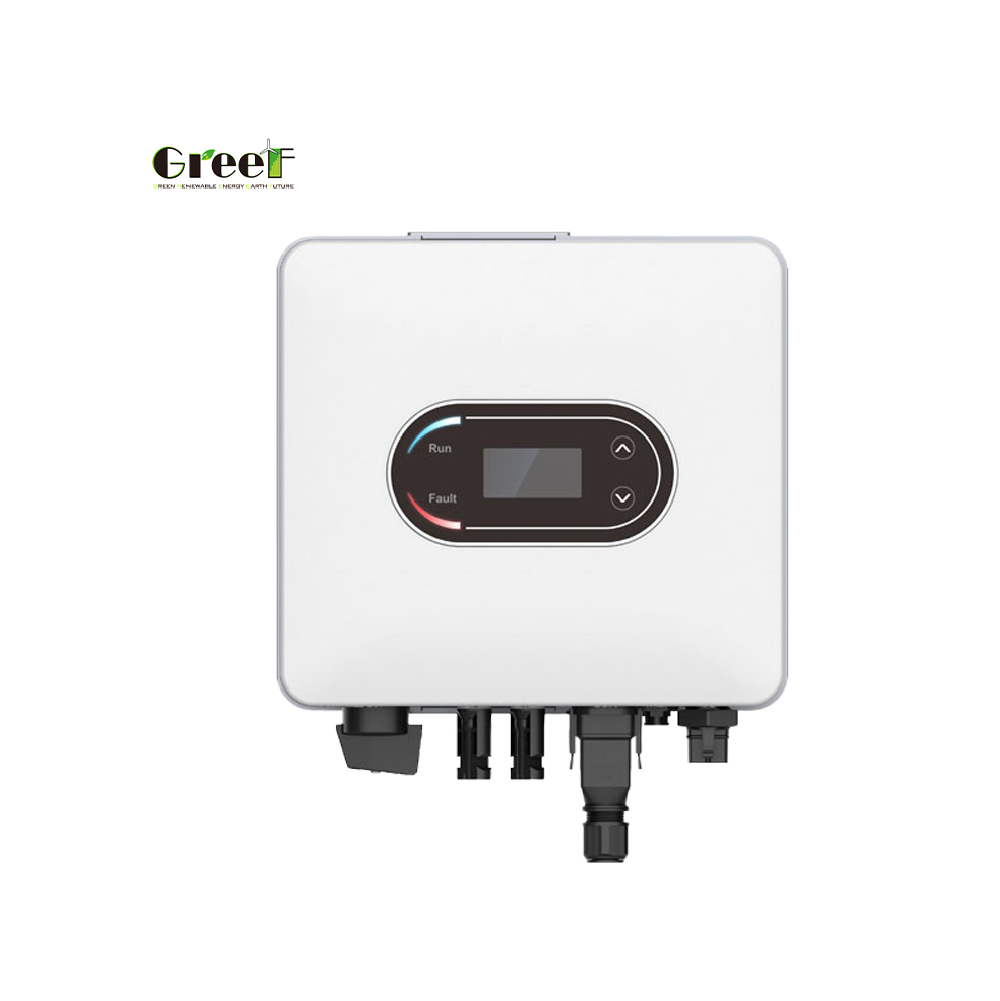

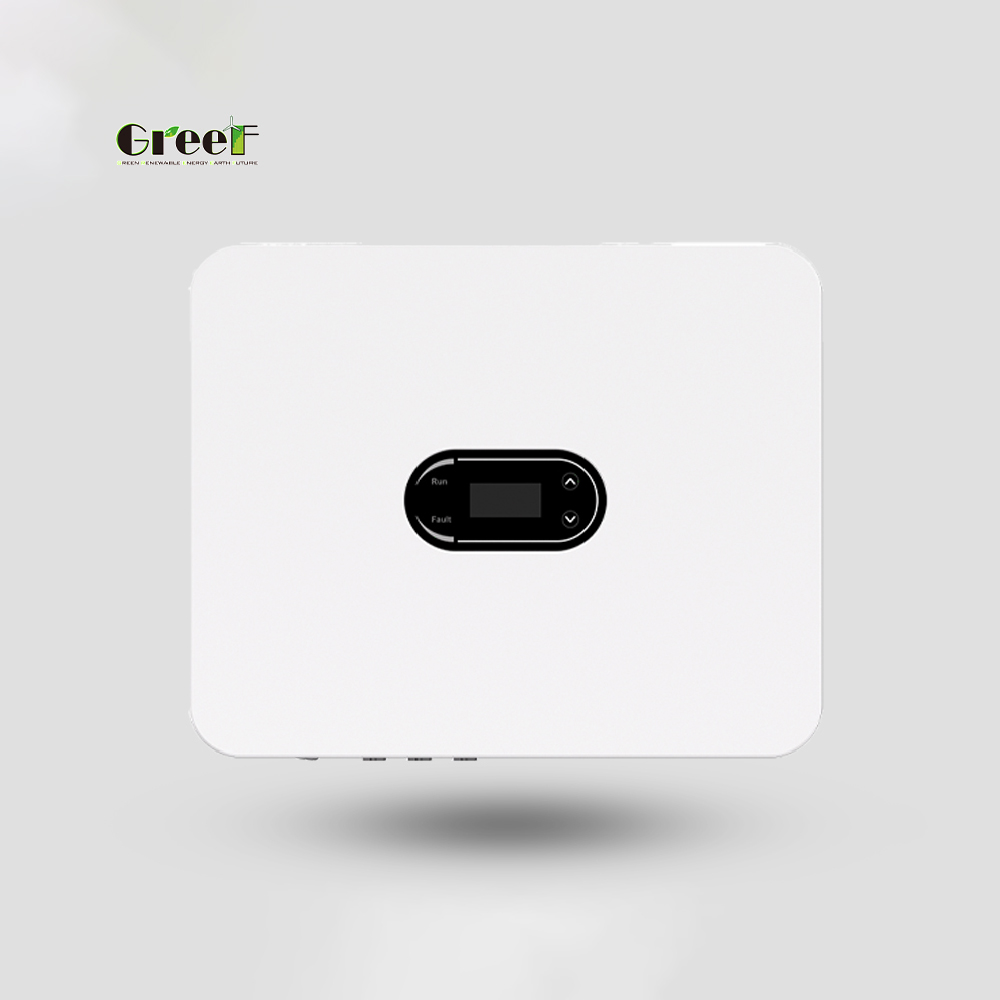

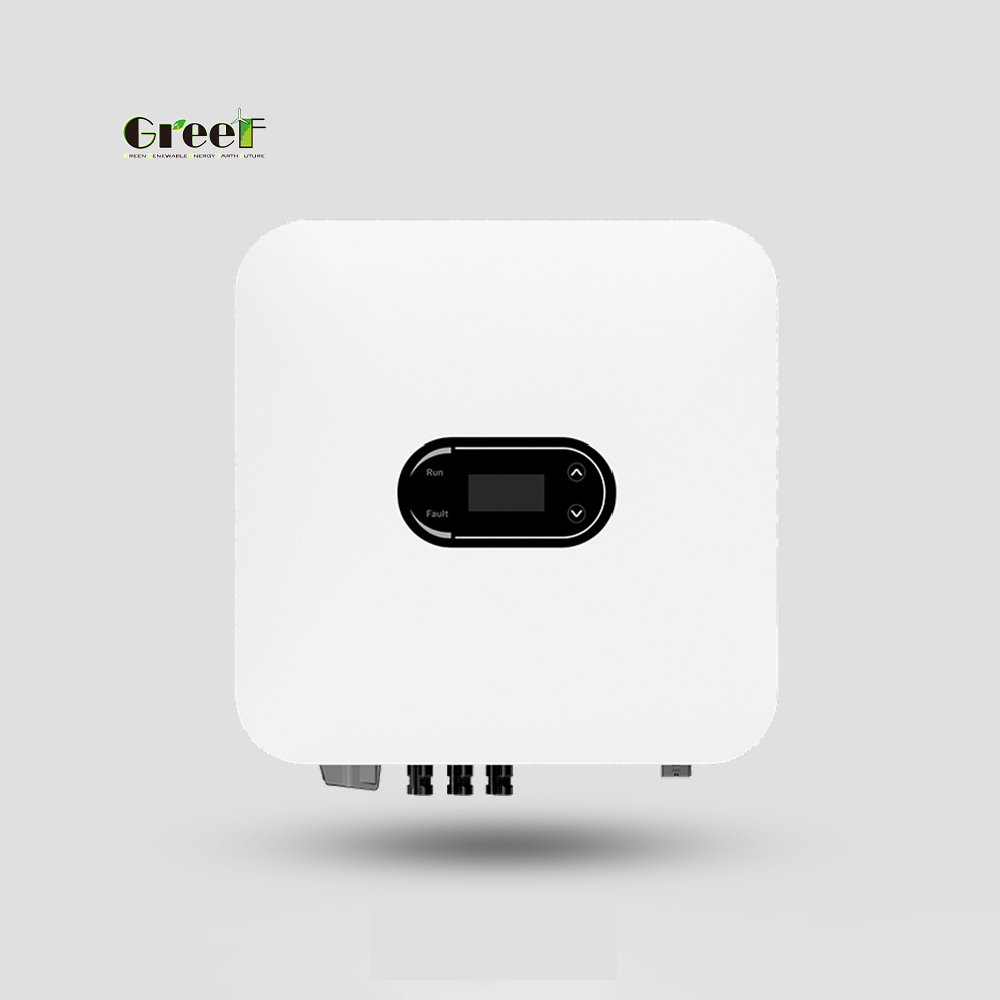

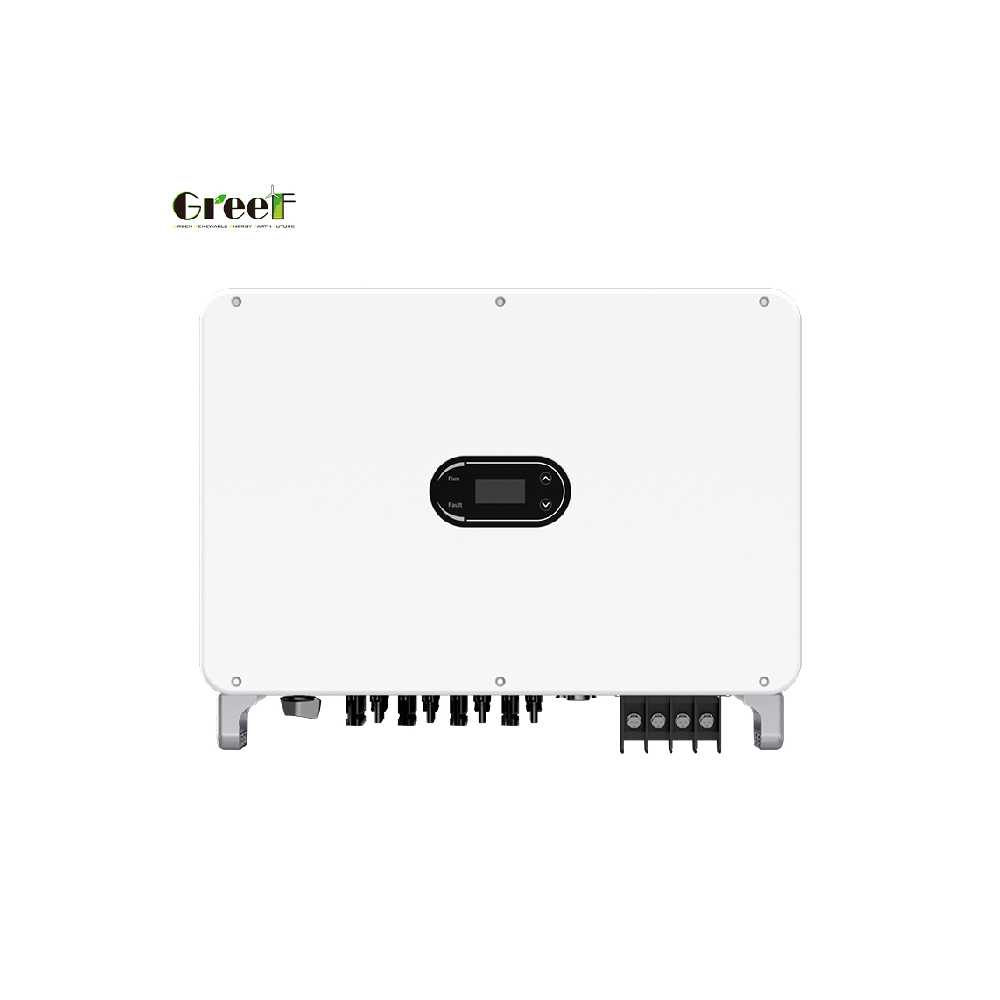

On-Grid Solar Inverter High Efficiency 3-100kw

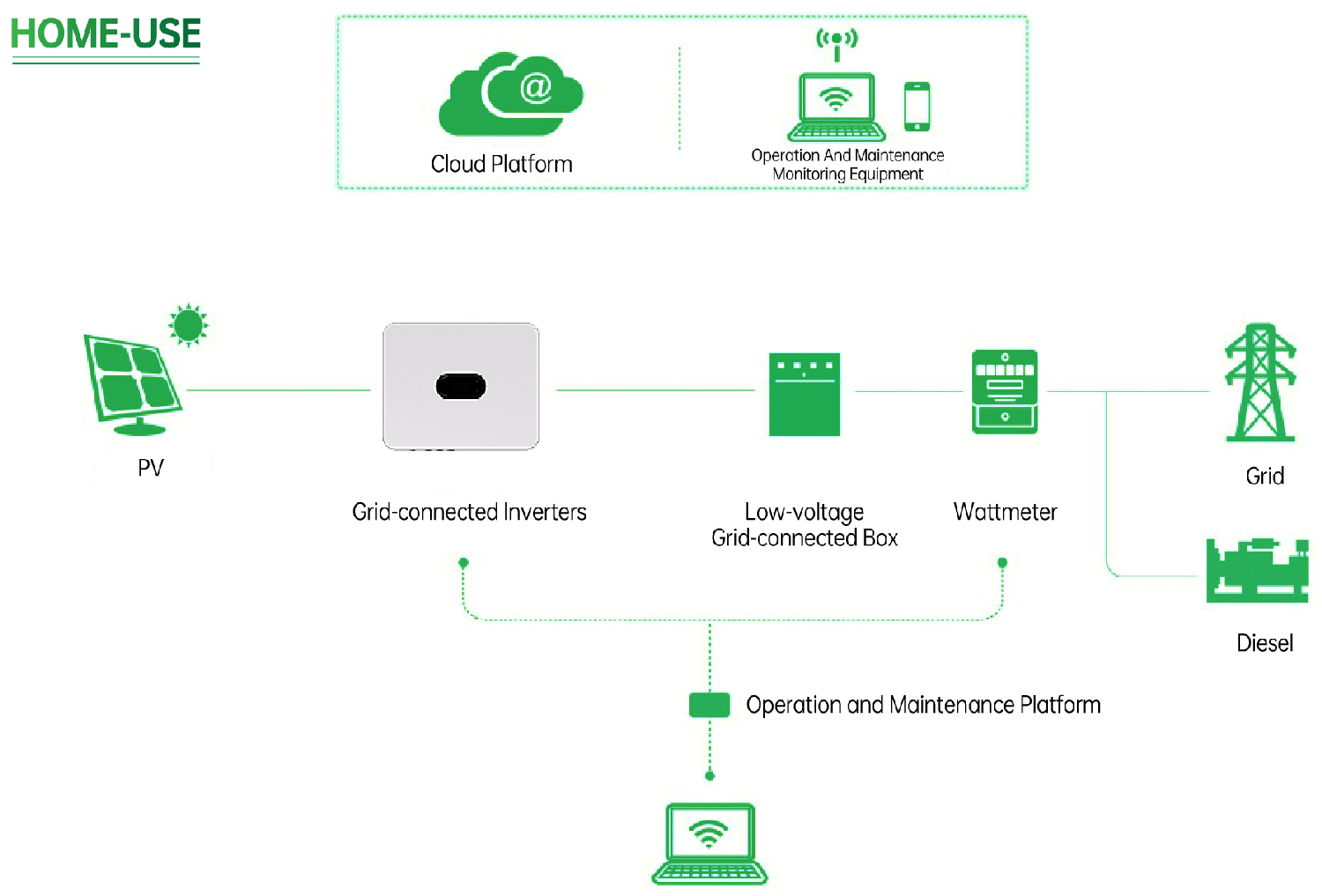

Grid-connected PV inverter is an important part of the grid-connected power generation system, which can switch the DC power formed from solar panels into AC power through inverter and send it to the public power system, realizing "self-generation and self-consumption, and the surplus power on the Internet". INVISION's XG series of grid-connected PV inverters are popular distributed string inverters in the international market, with a power range of 1-150kW, providing highly efficient, safe, and intelligent solutions for household/industrial/commercial grid-connected power generation systems.

product details

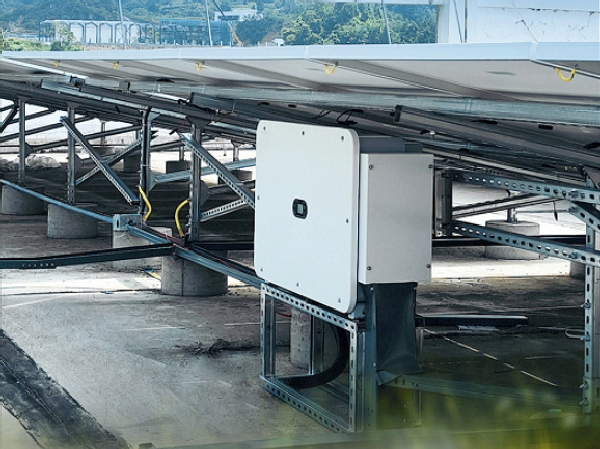

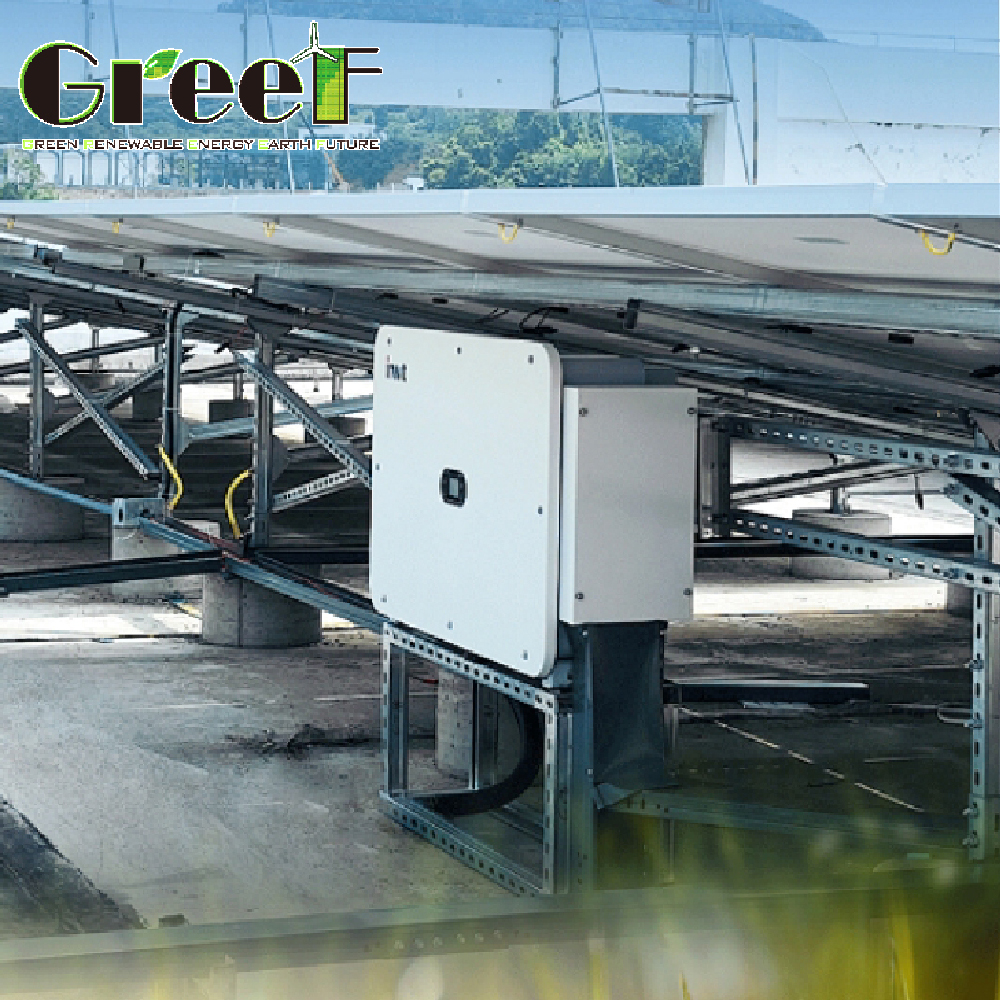

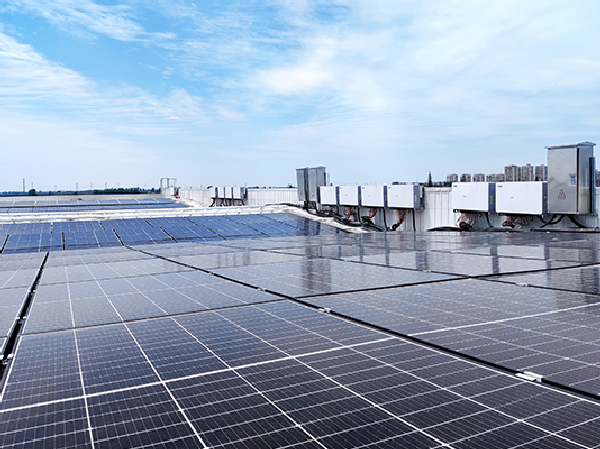

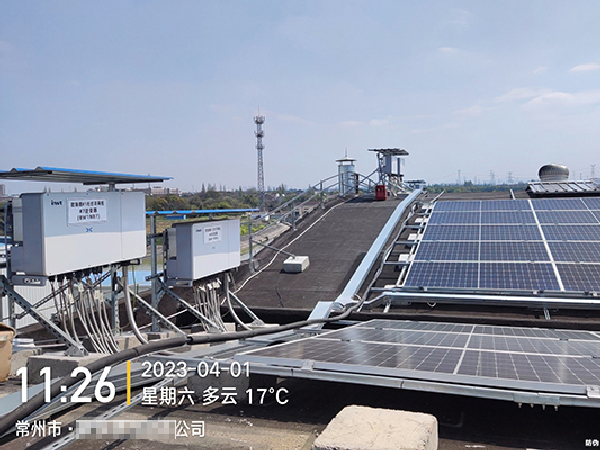

Application

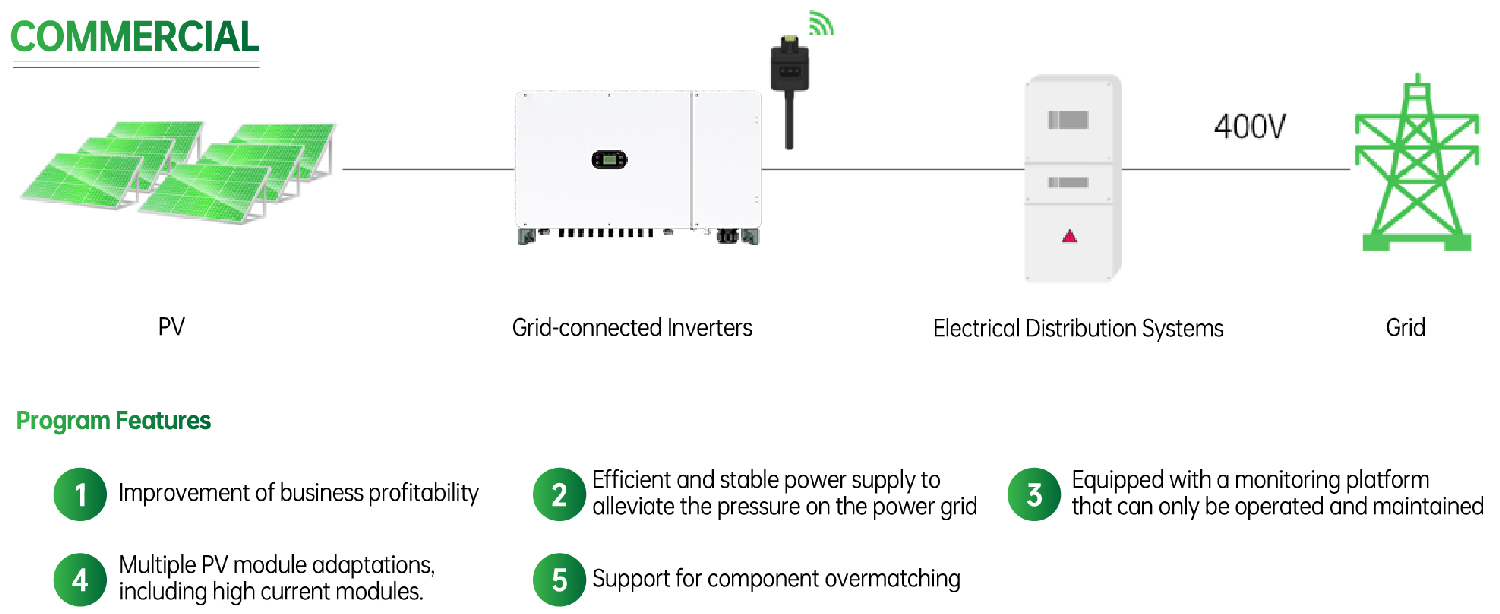

It is suitable for industrial, commercial, household and other scenarios, and helps clean energy projects realize the goals of high efficiency and low-carbon development.

Efficient Higher Revenue

150% DC Input Oversizing

Wide MPPT voltage range: 50V-550V

Max. input current per string: 20A, Compatible with high power modules

Intelligent：Simple O&M

Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults

Inteligent Fault Detection: AC side voltage and current waveforms real-time recorded, fast fault location

Support RS485/WiFi/4G: remote monitoring and operation via PC or mobile phones

Reliable: Worry Free

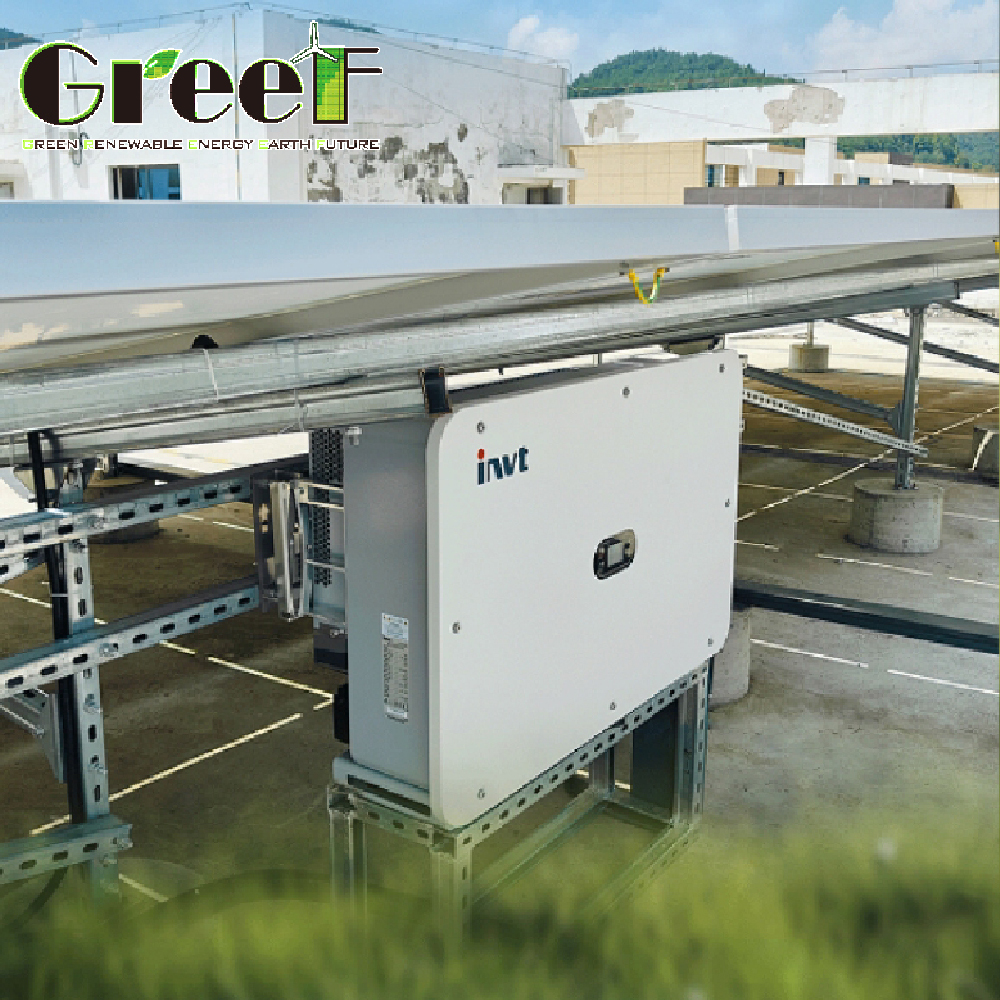

IP66 Protection Degree: support outdoor installation

AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation

Product Parameter

Model	XG1KTL-S	XG2KTL-S	XG3KTL-S	XG4KTL-S	XG5KTL-S
Input (DC)
Max. Input Power	1.5kW	3kW	4.5kW	6kW	7.5kW
Max. Input Voltage	600V
Start Voltage	60V
Rated Input Voltage	360V
MPPT Voltage Range	50V ~ 550V
Number of MPP Trackers / String per MPPT	1 / 1
Max. Current per MPPT	20A
Max. Short Circuit Current per MPPT	26A
Output (AC)
Max. Output Current	5A	10A	15A	20A	22.7Ad
Rated Output Power	1kW	2kW	3kW	4kW	5kWa
Max. Output Power	1.1kVA	2.2kVA	3.3kVA	4.4kVA	5kVAc
Rated Grid Frequency	50Hz / 60Hz
Rated Grid Voltage	220Vac / 230Vac / 240Vac
Rated Grid Voltage	>0.99 ( 0.8 leading ~ 0.8 lagging )
THDi	3%（Rated Power)
MPPT Efficiency	99.90%
Communication
Display	LCD / LED+APP
Communication	RS485 / WiFi / 4G
Certification	IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116
Weight	6kg
Operating Temperature Range	-30° C ~ +60° C
Cooling Method	Natural
Protection Degree	IP66
Relative Humidity	0 ~ 100%
Topology	Transformerless
Night Power Consumption	＜1W
