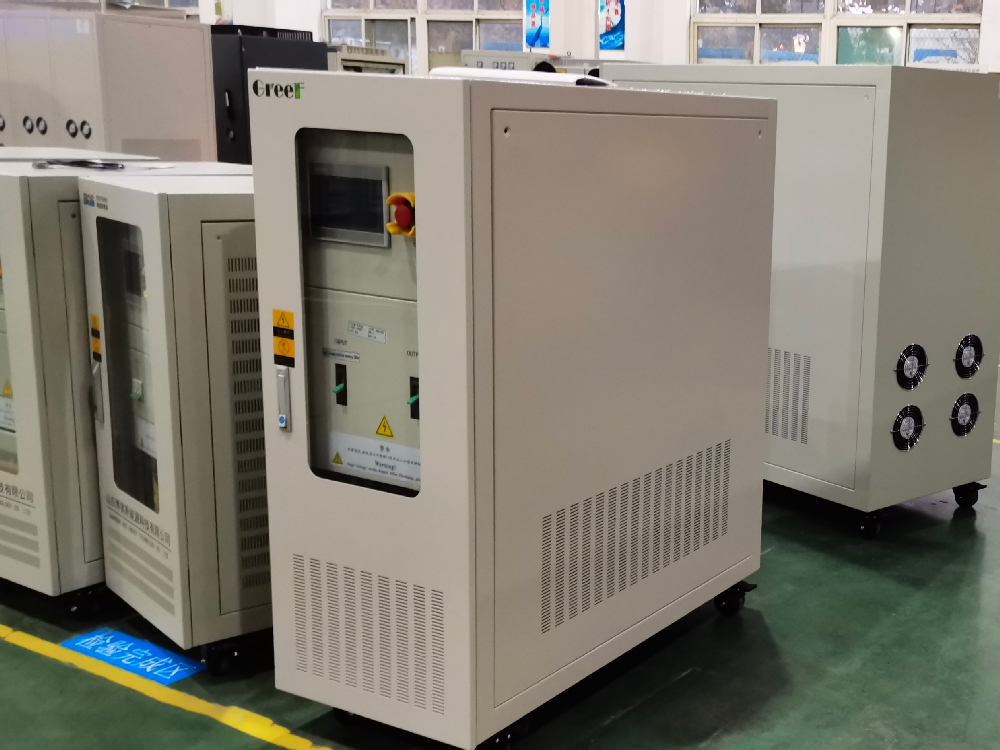

Frequency & Voltage Regulator Isolated Stable AC Power Supply

MODEL

AFVR-315

AFVR-316

AFVR-3110

AFVR-3115

AFVR-3120

AFVR-3130

AFVR-3150

AFVR-31100

AFVR-31200

 Power Capacity(VA)

5kVA

6kVA

10kVA

15kVA

20kVA

30kVA

50kVA

100kVA

200kVA

Circuit Mode

IGBT/SPWM pulse width adjustment mode

AC INPUT

Voltage

Standard 265V-495V（Or ±30% of Generator rated voltage）

Frequency

30-100Hz

Phase

Three Phase

AC OUTPUT

Voltage

110/120/220V±1% (customized)

Frequency

50Hz/60Hz Adjustable

Phase

Single Phase

Frequency Stability

≤±0.01%

Voltage Stability

≤1%

Wave Distortion

≤2%

Reaction Time

≤2mS

Overload capacity

110%,3 minutes,    200%,10 second

Dynamic voltage transient range

2%(0~100% load change)

THDV

THD<3%(nonlinear load)

DPI                              ( Dotsperinch )

Display Window

High precision LCD touch screen display

Frequency Meter

0.1Hz

Voltage Meter

0.1V

Current Meter

0. 1A

Power Meter

0.1W

Efficiency

≥90%   suitable for  inductive load, capacitive load, resistive load and any mixed load.

Protection Function

The importation of non-fuse switch, without output  fuse switch, the electronic circuit to detect over-voltage Express .Over voltage, over current, over temperature, over load, short circuit, and automatic alarm.

Insulation Reactance

500Vdc 20MΩ

Pressure Endurance Insulation

1500Vac/5mA/1min

Cooling Model

Compulsive fan cooling

Working Temperature

-10℃-45℃      IP22

Relative Humidity

0-90%（No condensing）

Altitude

1500meters

Dimension

Length (mm)

350

350

400

400

500

500

650

650

1910

Width (mm)

560

560

660

660

830

830

1420

1420

1160

Height ( mm)

600

600

700

700

1000

1000

1365

1365

1940

Net Weight(Kg)

60kg

65kg

97kg

107kg

190kg

215kg

290kg

460

850
