On-grid Solar Energy System High-Efficiency Customized 5-5000Kw

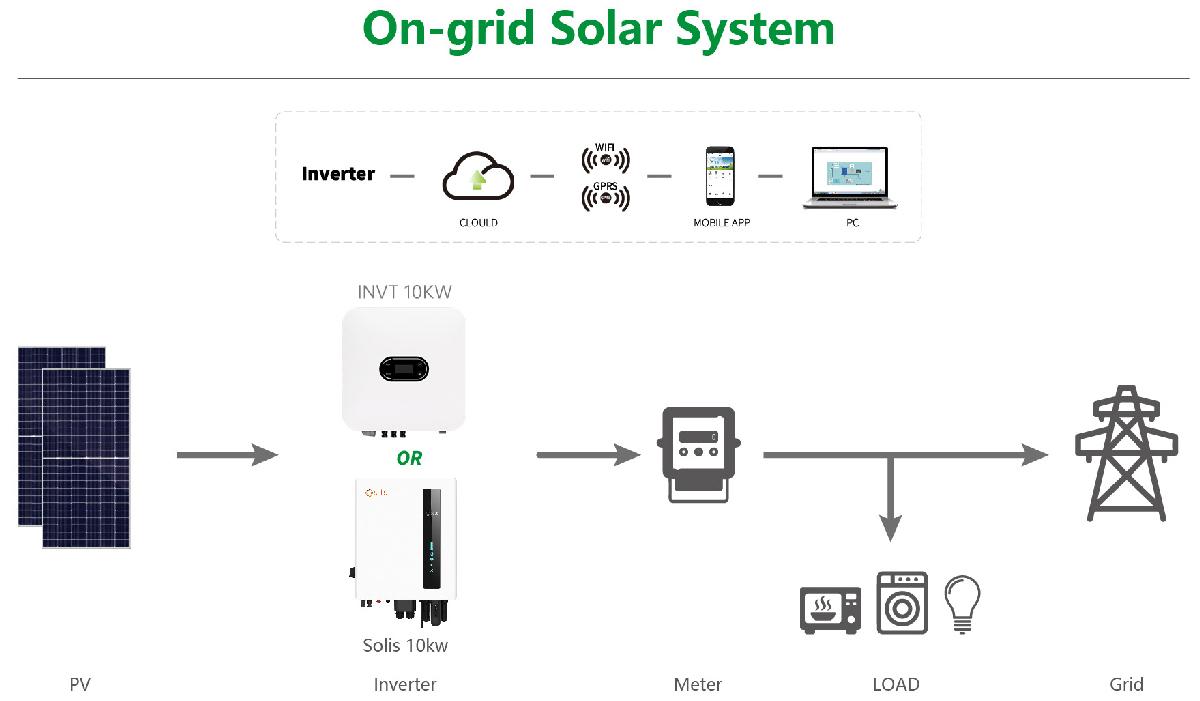

Working Principle
1.Energy Conversion: Light excitation generates DC power from the movement of electrons within the PV module.
2.Inverter and grid connection: the inverter converts the DC power to AC power, synchronizes it with the grid and inputs it into the distribution network.
3.Electricity management:Self-generation and self-consumption: Prioritizing the supply of local loads; Surplus power on-grid: excess power is fed into the grid; When the power is insufficient, it will automatically supplement the power supply from the grid.

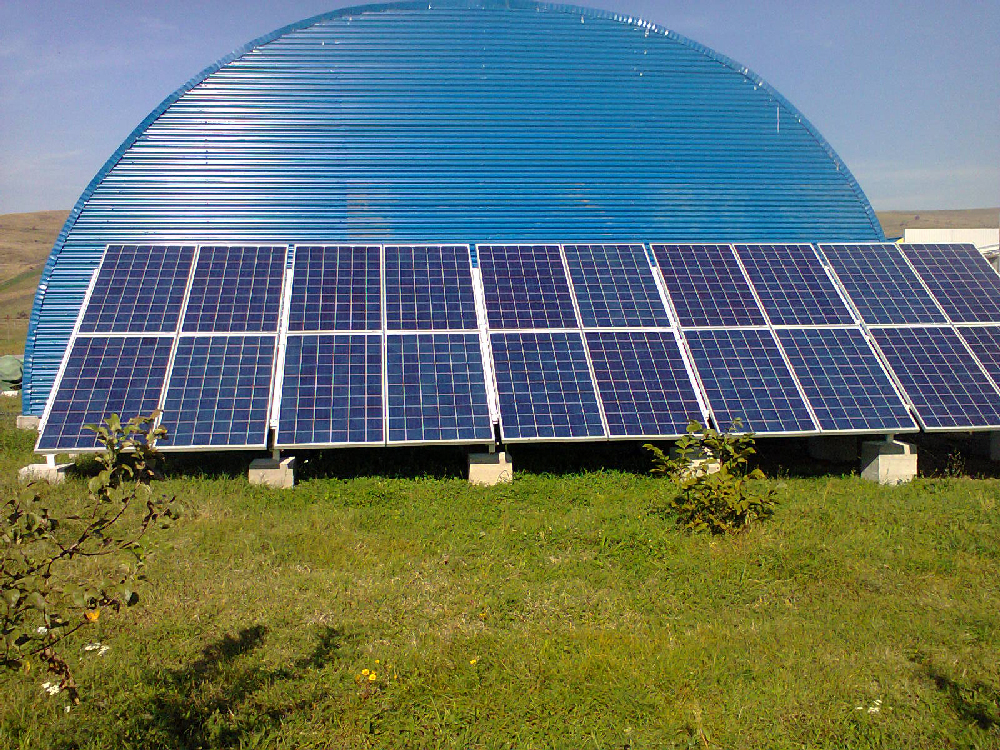

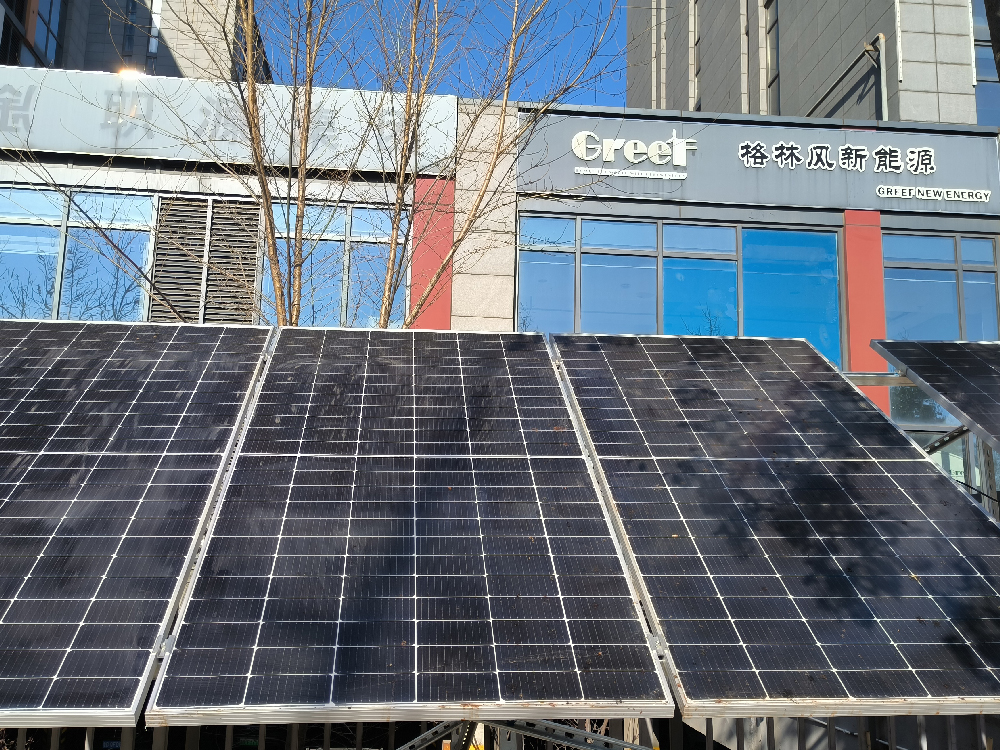

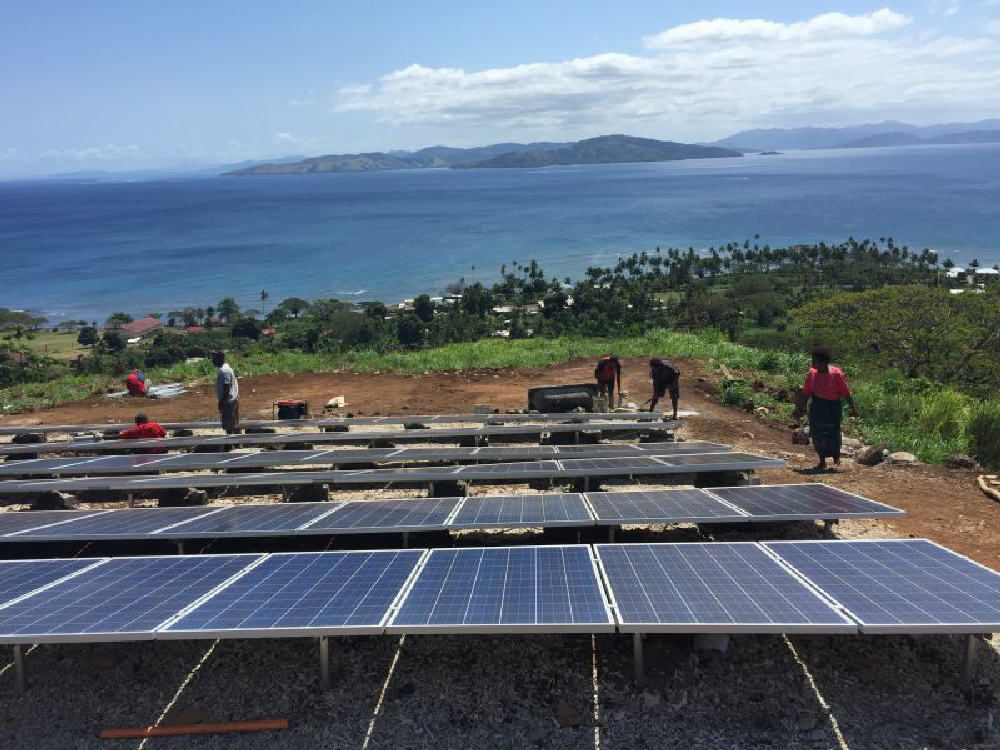

Application
Remote mountainous areas, powerless areas, islands, communication base stations, street lights, etc.
Advantage
1.Economy: Save battery cost (reduce construction cost by 35%-45%), increase revenue by selling surplus electricity.
2.Environmental protection: zero carbon emission, clean and pollution-free.
3.Efficient and stable: distributed power generation reduces transmission losses, and the grid-connected inverter dynamically adjusts voltage/frequency (deviation ±0.5Hz) to ensure grid compatibility.
4.Policy support: National mandatory grid full acquisition of PV power, providing free grid connection services.Remote mountainous areas, powerless areas, islands, communication base stations, street lights, etc.Technical specification
|
10kW On-grid solar system |
|
| Solar Panel Quantities | 18PCS |
| Inverter | 1 Set |
| PARTS&TOOLES | 1 UNIT |
| PV CABLE | 200m |
| PACKAGE PROTECTION &CHARGE | 1 UNIT |
The above system is for reference only, our company can change the system programme suitable for you according to your needs. Please contact us if you have any needs.
System Solution
In addition to grid-tied solar systems, we can also customize off-grid, hybrid solar systems.
-
Off-Grid System
-
Grid-Tied System
-
Hybrid System
