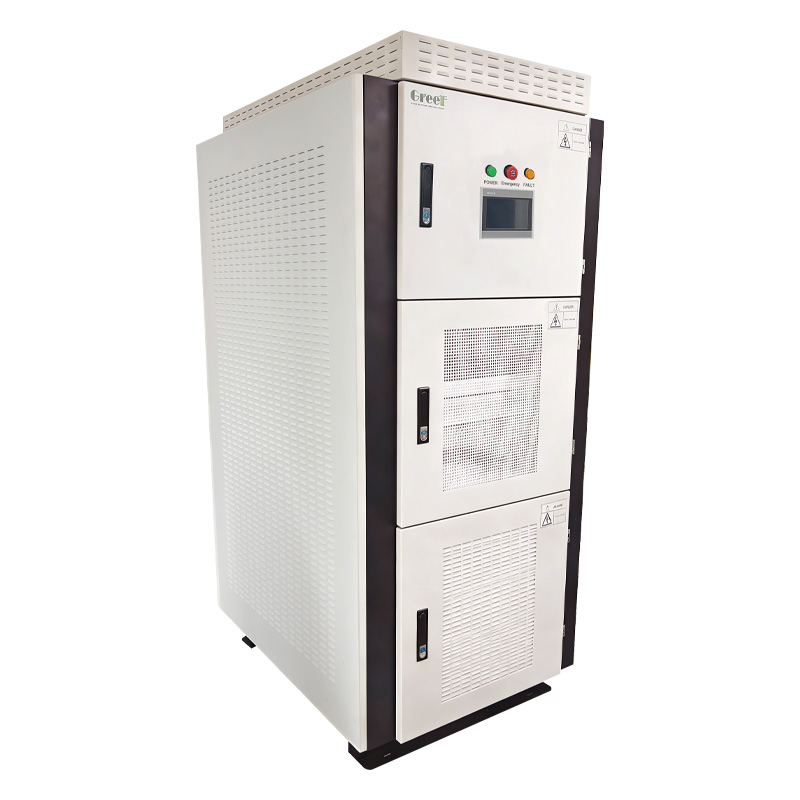

AC Generator-Battery Hybrid Converter Customization High Voltage Low Voltage 100kw 110kw 125kw
Product Introduction
🔋 GREEF ENERGY multi-functional converter integrates the capabilities of AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system. Featuring a configurable dual LCD touchscreen, it utilizes advanced converter technology to achieve stable voltage/frequency control for PMSGs, ensuring seamless Load power supply. It can also be configured to switch to a grid-tied mode for operation and grid charging.
Product Features
✔ 1. EMS smart energy management system
✔ 2. Multiple configurable operating modes:off-grid, grid-tied, and grid charging
✔ 3. Double LCD smart touch Screen Display
✔ 4. Generator power curve tracking technology
✔ 5. AC/DC dual backup for auxiliary power supply
✔ 6. Control Technology for Unbalanced Loads
✔ 7. Stardard RS 485 modbus RTU protocal
✔ 8. PMW dump load over voltage over speed protection function (optional)
✔ 9. Water gate motor control function (optional)
✔ 10. WIFI/ LAN Remote monitoring and control app available (optional)
✔ 11. Support customized sensor control function (optional)
✔ 12. Support add Static Transfer Switch (STS) for Grid-Tie/Off-Grid Applications (optional)
Product Parameters
| Model | Mars-100kt |
| Rated power(kW) | 100 |
| Rated voltage(Vac) | ≥ 320 |
| Optimal generator rated voltage(Vac) | 450 |
| AC votlage working range(Vac) | 240 ~ 550 |
| Maximum AC current(A) | 180 |
| Battery type | Lithium-ion |
| Battery voltage range(Vdc) | 350 - 450 |
| Rated battery voltage(Vdc) | 400 |
| Max charging&discharging Current(A) | 250 |
| Rated charging/discharging power(kw) | 100 |
| Rated charge and discharge current(A) | 144 |
| Rated grid voltage(V) | 400 |
| Permissible grid voltage range(v) | 300 - 460 |
| Rated grid frequency(Hz) | 50 / 60 |
| Maximum efficiency(%) | 95 |

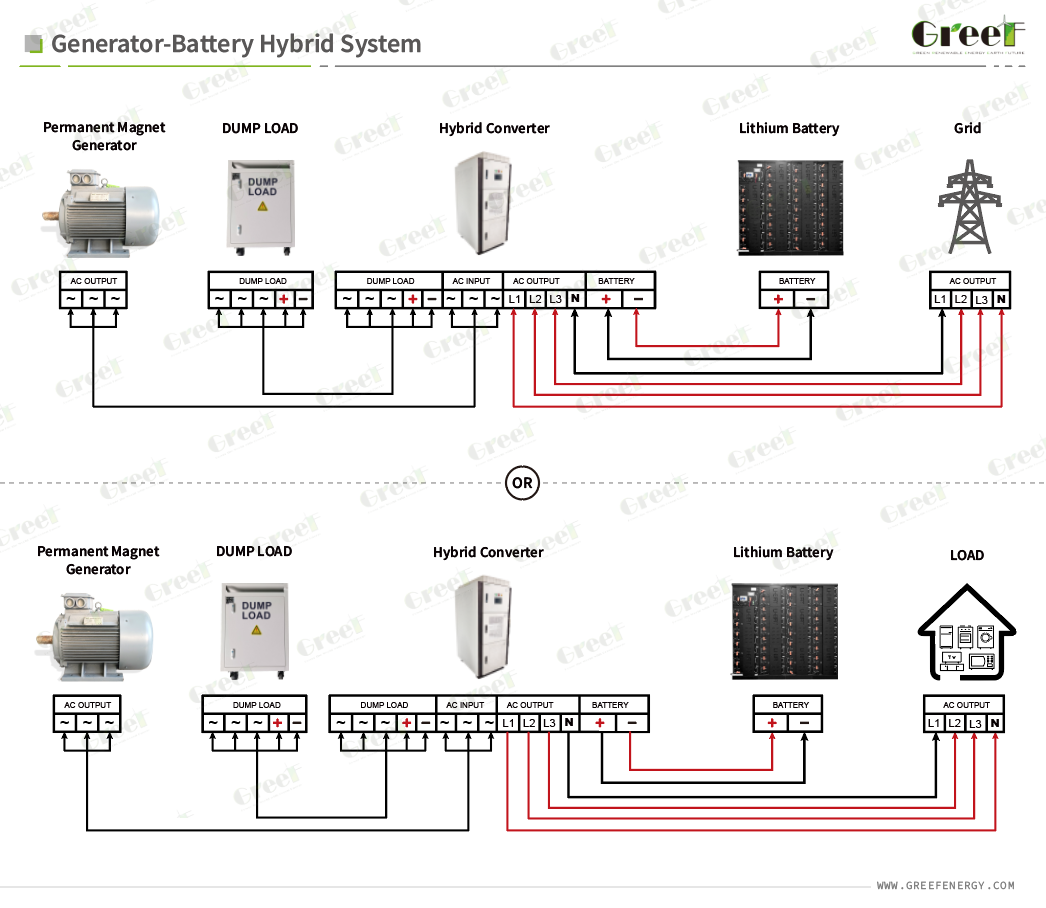

System Solution
🔎 We can tailor products to suit your specific requirements. Should you have any particular needs, please do not hesitate to contact us!
