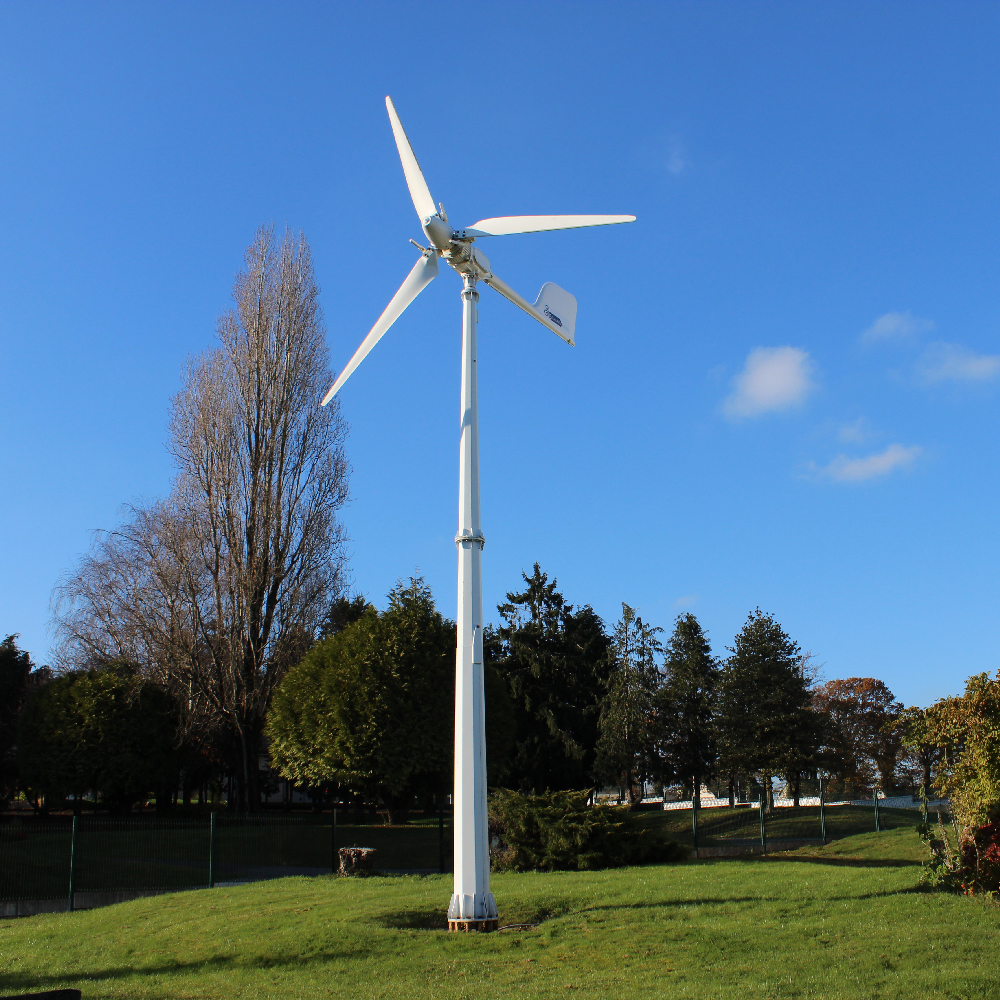

5kW-50 kW Low Speed Three Phase Pitch Control Wind Turbine

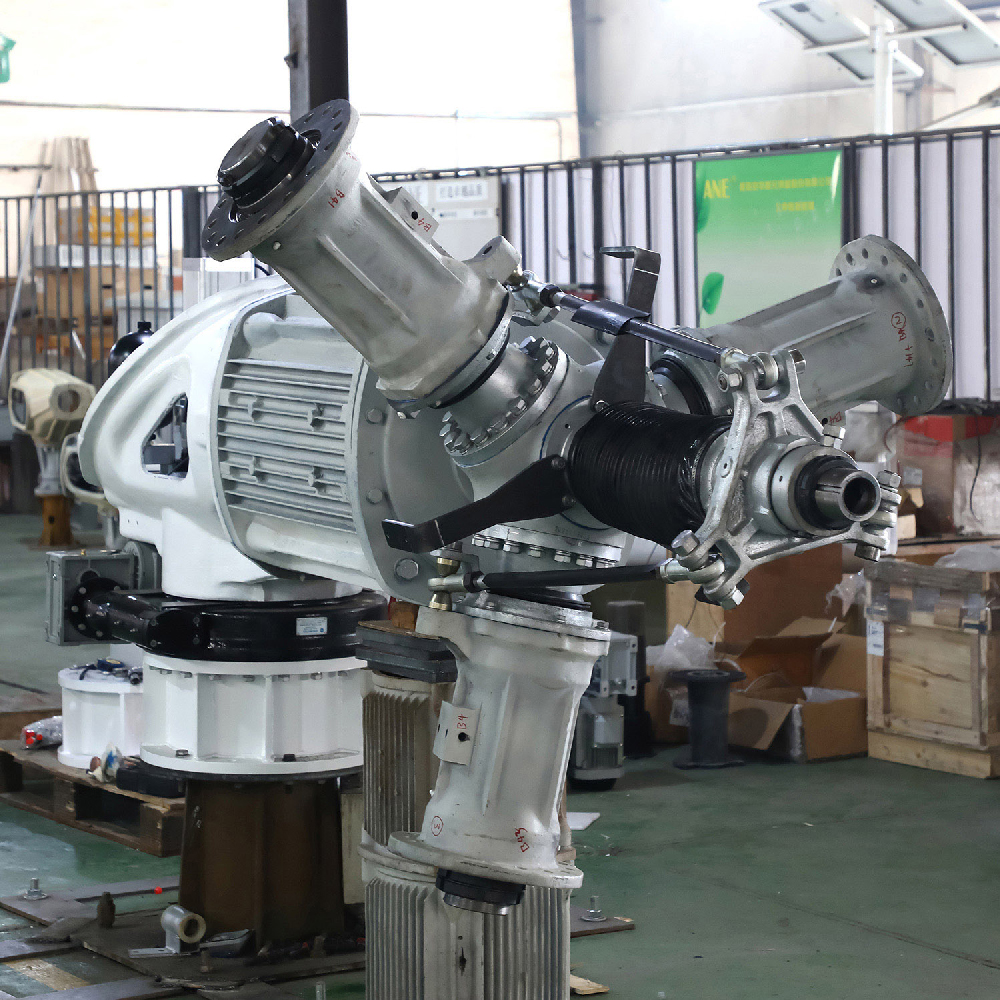

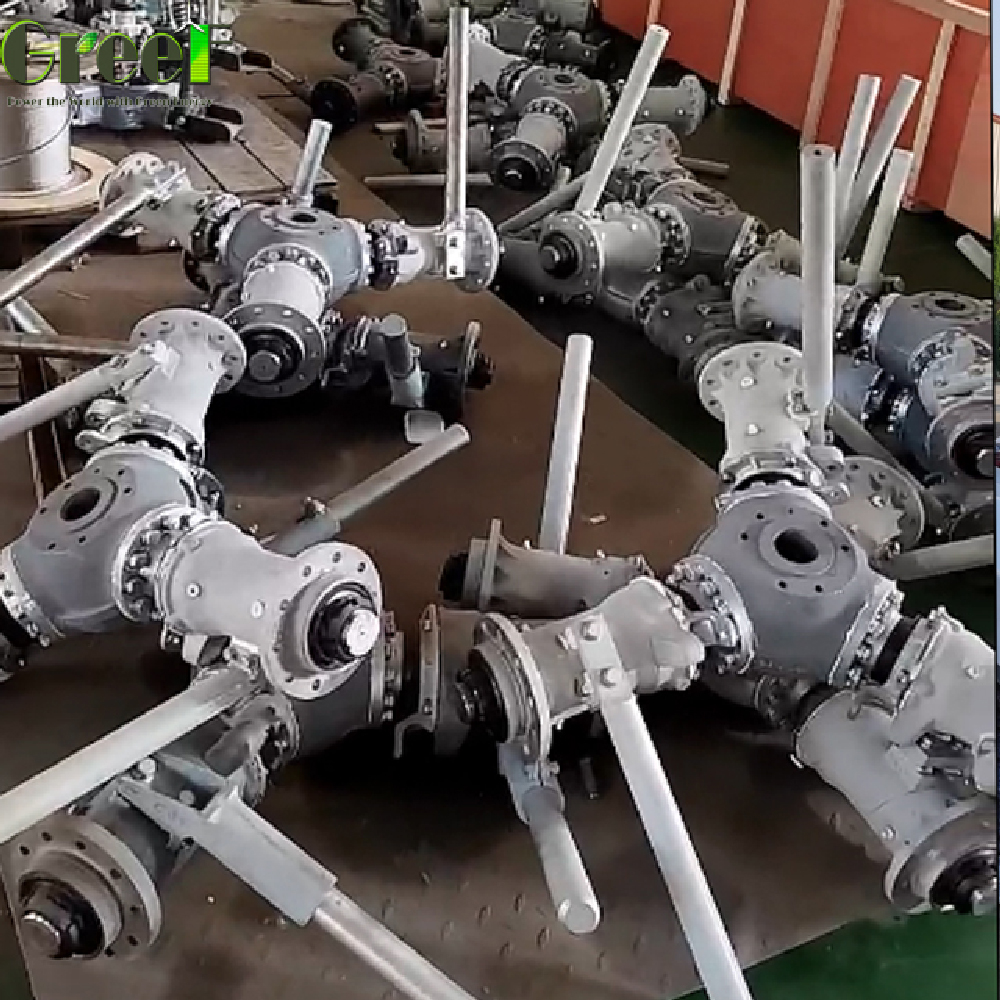

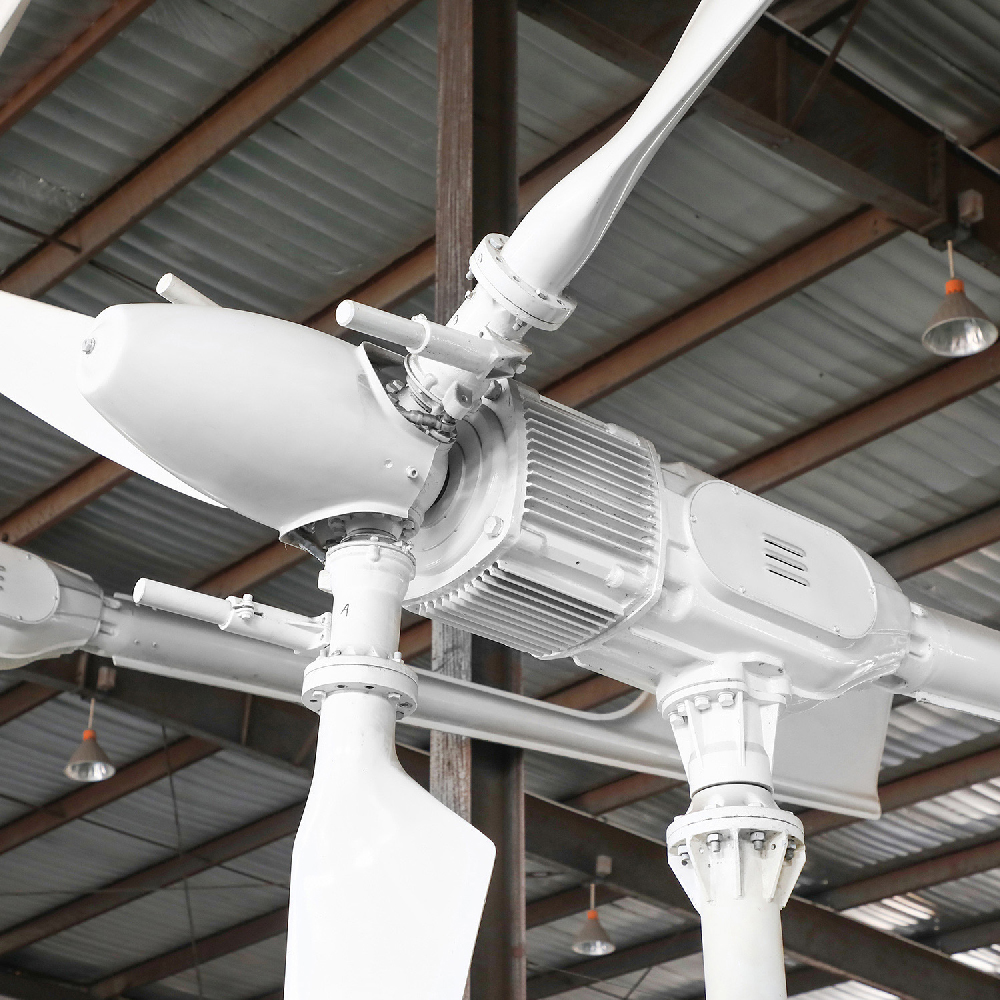

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more

(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;

(2) Below the rated wind speed, the wind turbine outputs efficiently;

(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.

product details

Technical specification

Model	AH-5KW	AH-10KW	AH-20KW	AH-30KW	AH-50KW
Rotor diameter (m)	5.6	7.78	9.8	13.1	14M
Blade material & Qty.	FRP*3
Rated power (kW)	5	10	20	30	50
Rated wind speed (m/s)	11				14
Generator type	3-phase PMG
Working wind speed (m/s)	3-30
Start-up wind speed(m/s)	2.5
Survival wind speed (m/s)	60
Rated voltage (VDC)	400/240/custom made	400	450		400
Speed regulation method	Pitch-controlled		Pitch control + Active yawing +electromagnet brake	Auto yawing+pitch-controlled
Wind answering method	Up wind			Up wind+yawing
Stop method	Auto brake
Gale protection	Smart control+unattended
weight (kg)	400	550	1210	2800
Noise level (dB)	≤65
Tower height (m)	≥8	≥12	≥12	≥20	≥20m
Working temperature	-20℃～+50℃

Power Curve Tracking Function

● For off-grid system –Marching MPPT Charge controller

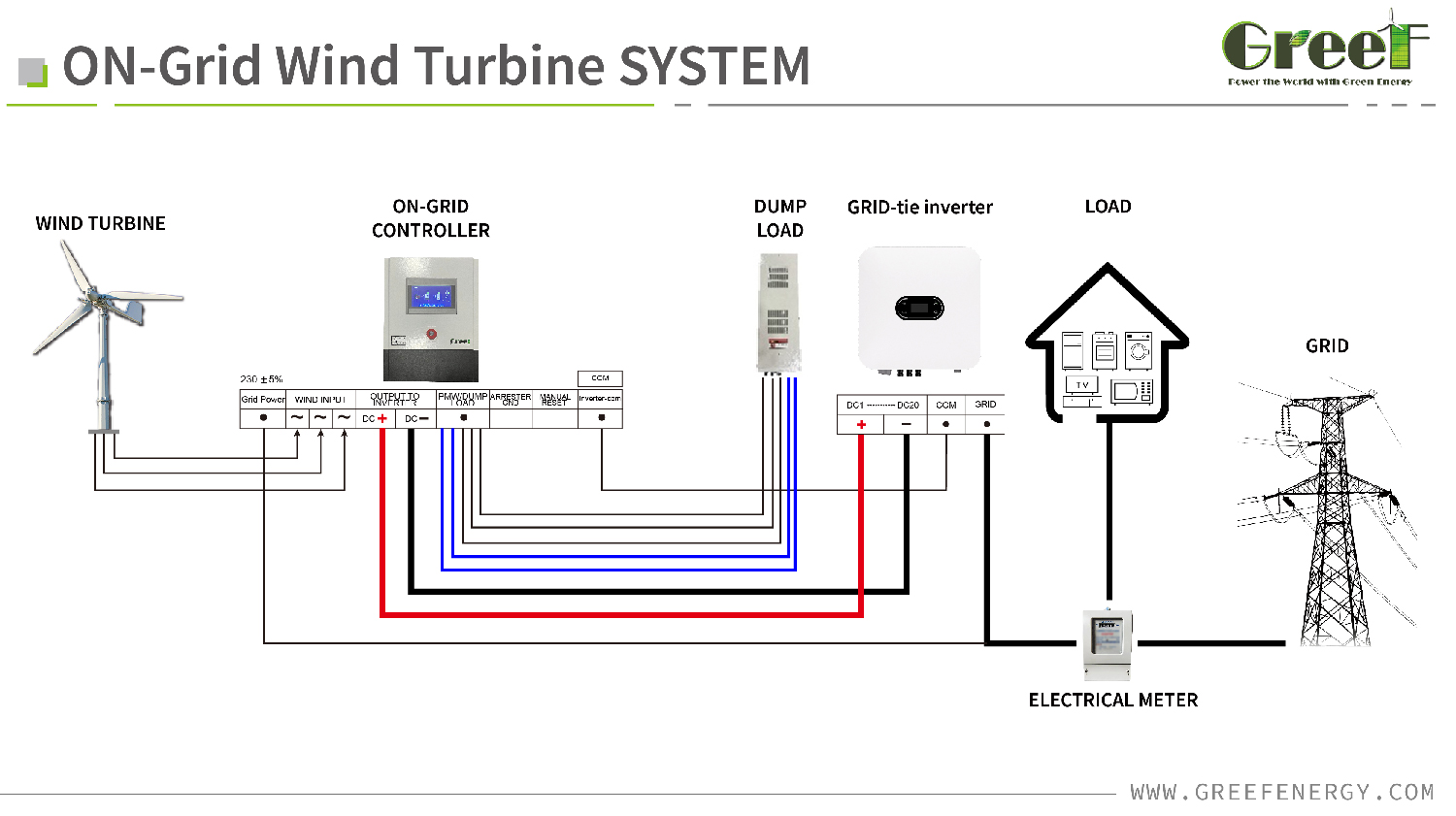

● For on-grid system –Marching MPPT Wind Inverter

● Wind turbine MPPT track point adjustable by yourself.

● Off-grid system wind turbine low cut in wind speed charge.

● Complete protection function

● Several functions are optional, such as PV control function, wind speed measure function, rotational speed control function and temperature compensation function.

● RS232/RS485/RJ45/GPRS/WIFI/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth/RJ45 connection).

5kW-50-kW-Low-Wind-Speed-High-Efficiency-Pitch-Control-Horizontal-Wind-Turbine

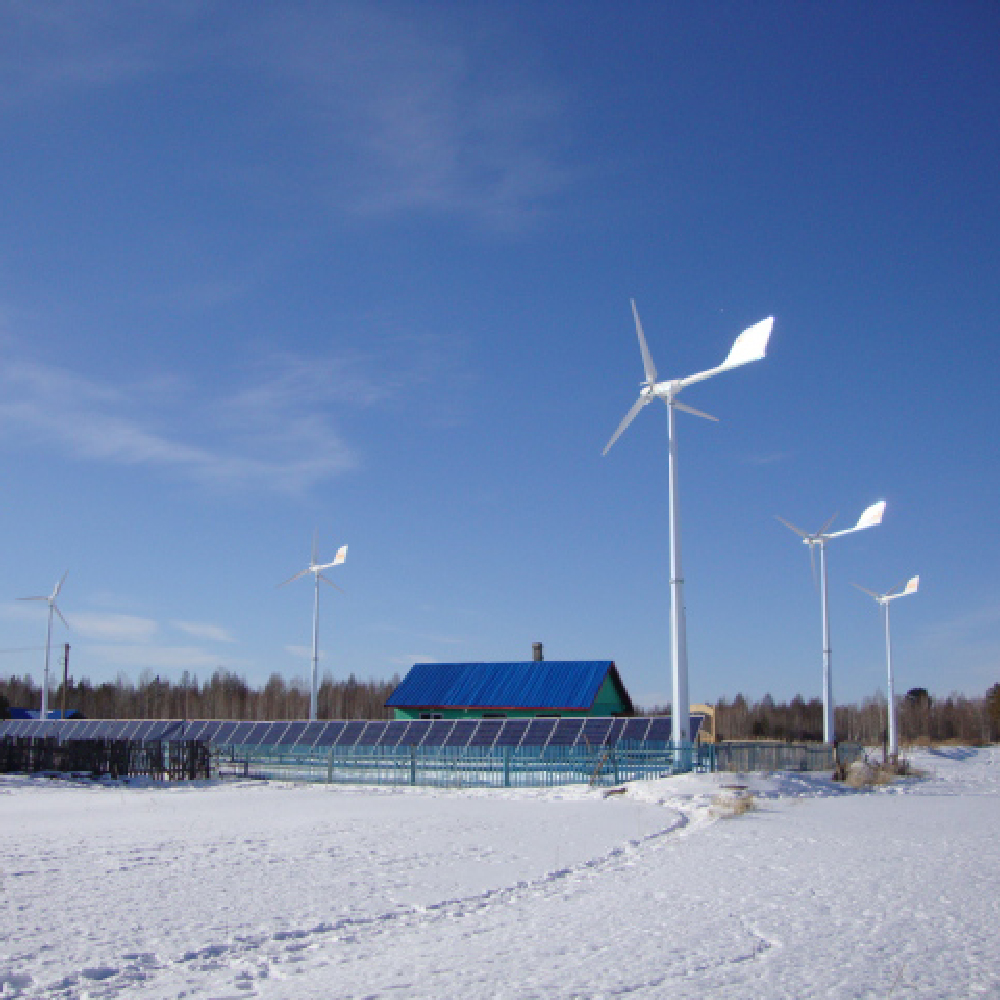

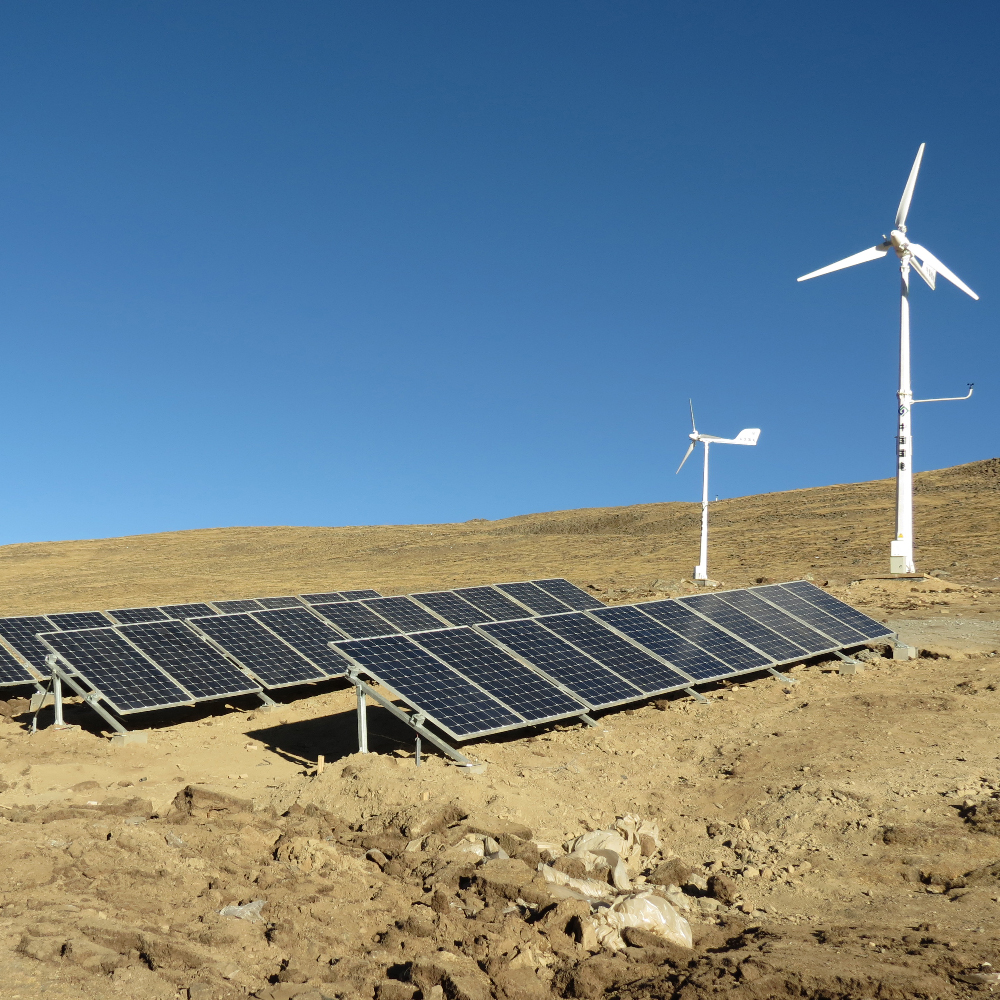

SYSTEM SOLUTION

Our company can customize wind power systems, including: off-grid, grid-connected and hybrid modes, according to your needs to customize the most suitable system for you.
