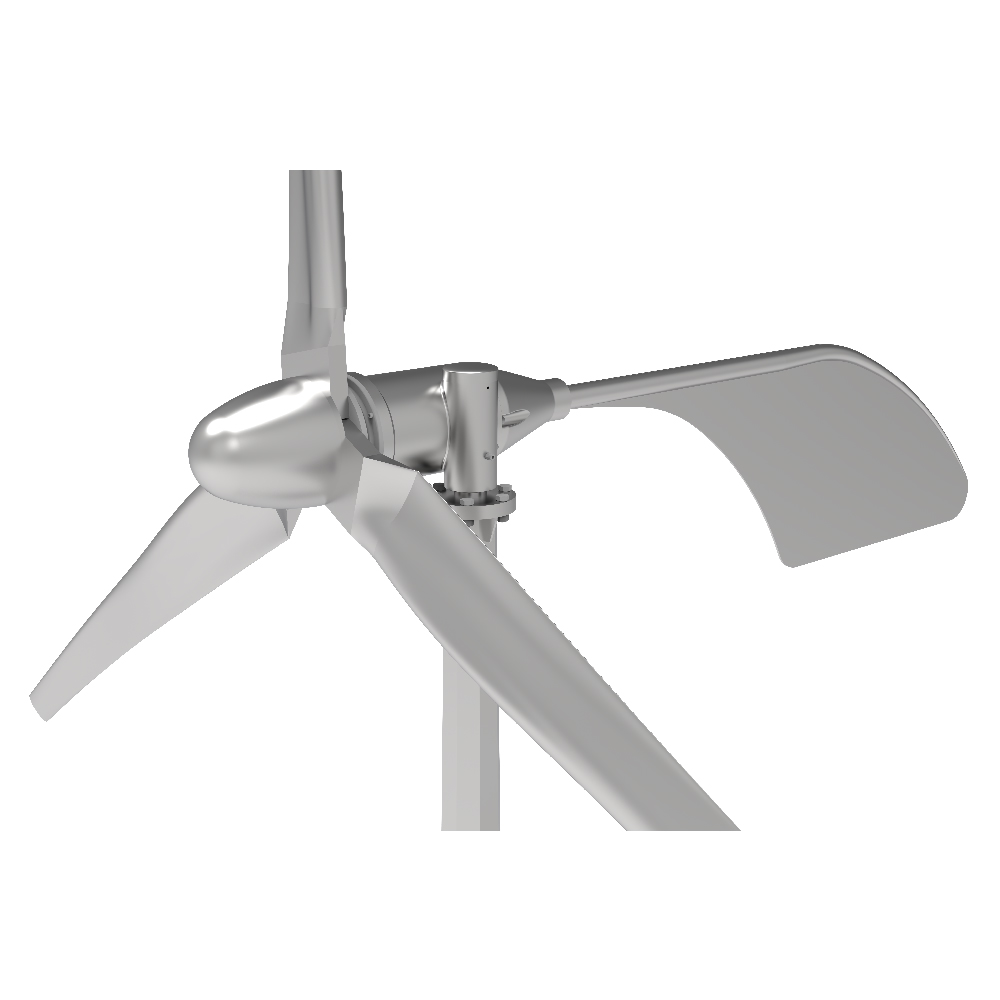

1kW-30 kW Horizontal Axis Wind Turbine

GREEF Horizontal Axis Wind Turbine (Power Range: 1KW-30KW)‌ is a cutting-edge clean energy device that efficiently converts wind energy into mechanical energy and then into electrical energy via a generator. Featuring a horizontal-axis design and an intelligent speed-regulation system, it operates effectively in a wide wind speed range of 3–25 m/s and can achieve stable performance in areas with an average annual wind speed of just 4 m/s or higher.

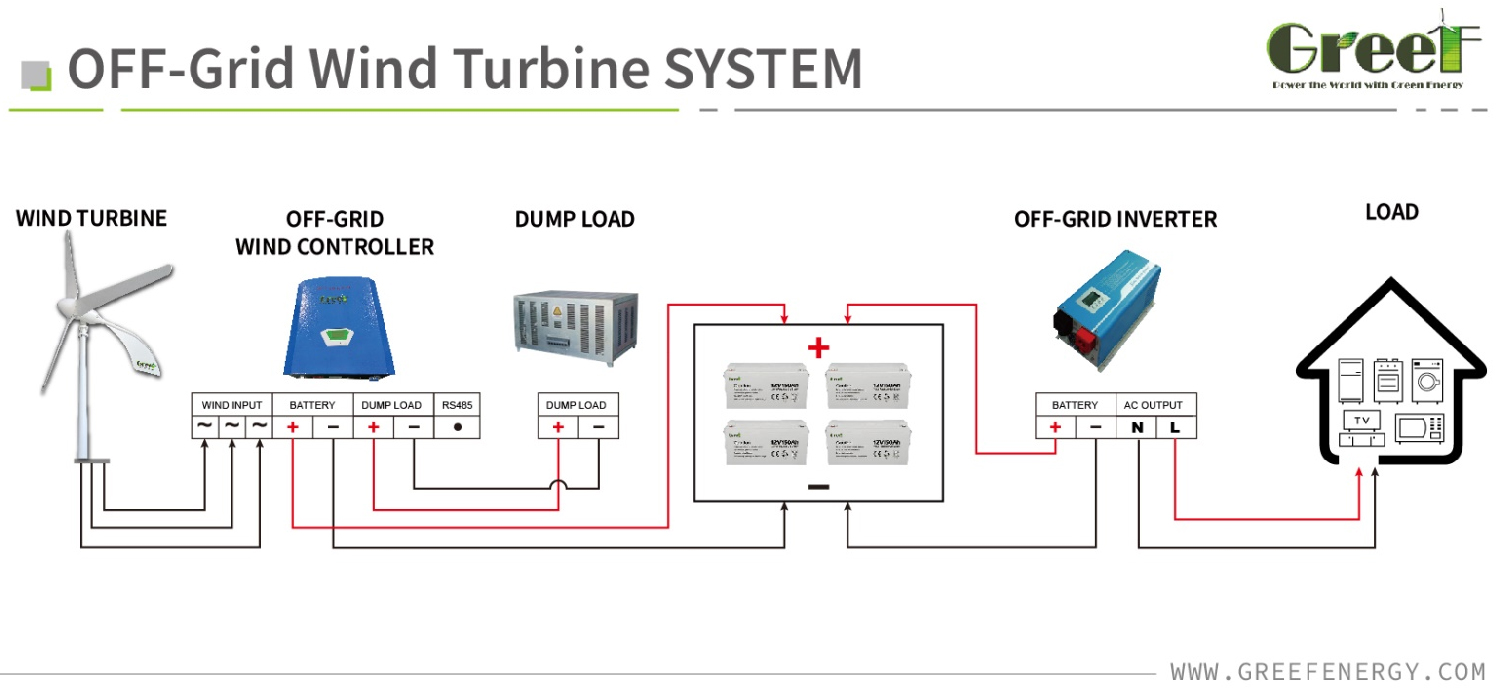

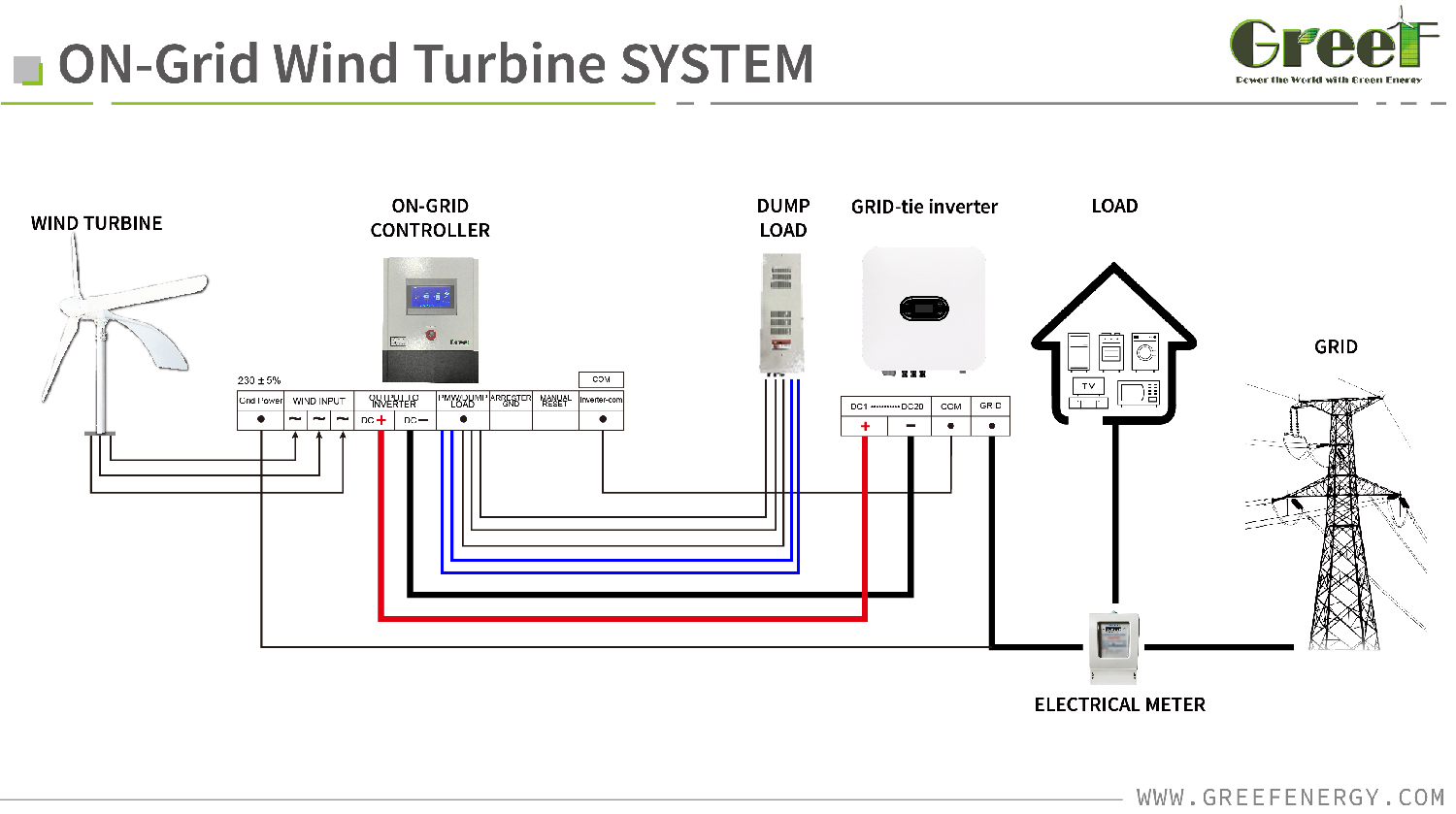

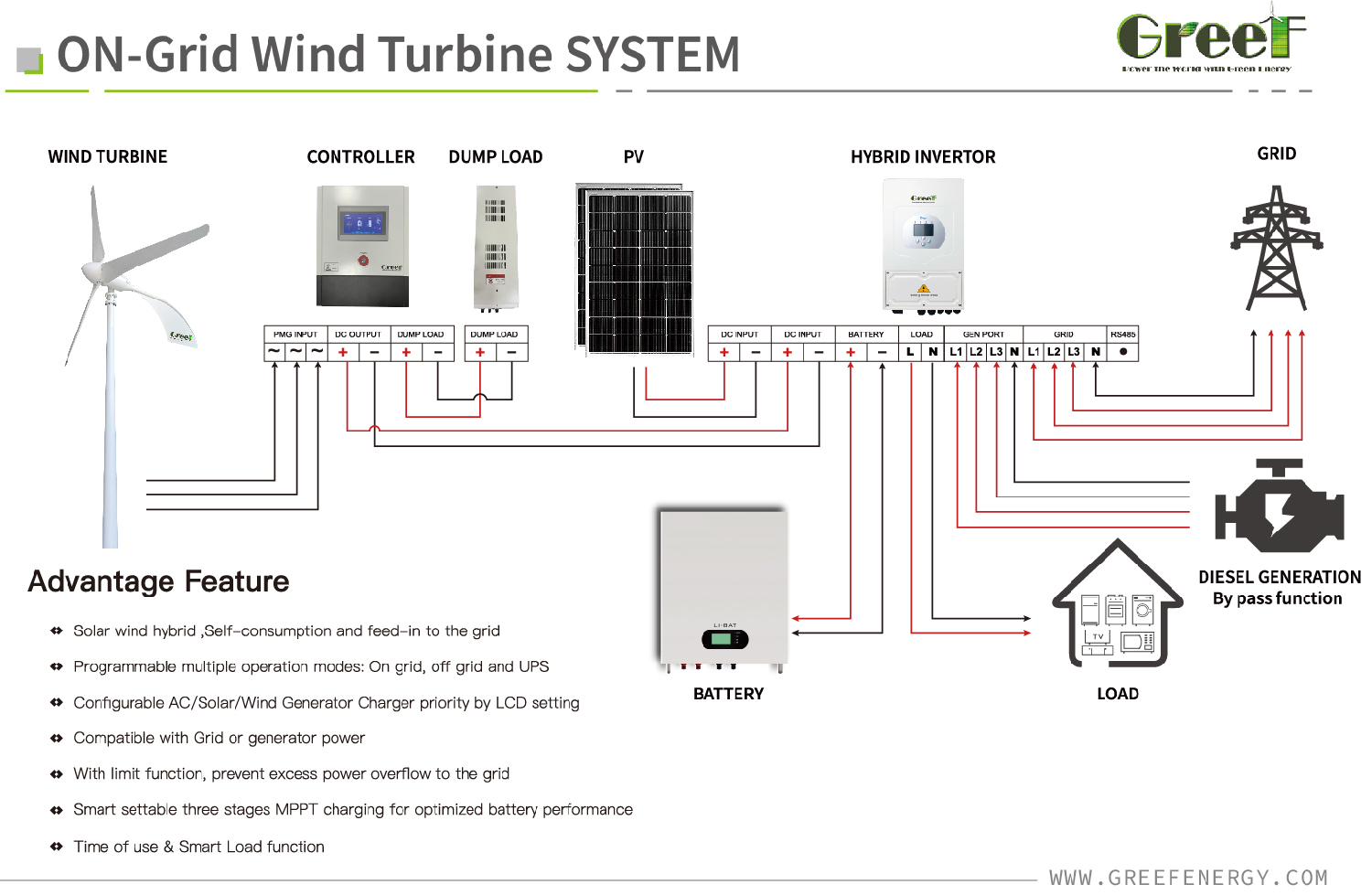

The system consists of ‌aerospace-grade aluminum alloy blades, a permanent magnet generator, and an intelligent controller‌, achieving a conversion efficiency of up to ‌42%‌. Its ‌low-wind-speed startup technology (3 m/s) and hydraulic yaw system‌ ensure continuous power generation even in challenging wind conditions. The turbine supports ‌both off-grid and grid-connected operation‌: it can directly charge battery banks or, through an inverter, supply stable ‌220V/380V AC power‌, meeting diverse electrical needs such as lighting, television, communication equipment, and power tools.

product details

Compared to traditional vertical-axis turbines, this model offers three key advantages:

Zero-emission operation‌ with no fuel consumption, fully compliant with carbon-neutral standards.

Ultra-low noise levels‌ of just ‌45 dB‌, making it suitable for residential installations.

Modular design‌ allowing flexible power scaling from ‌1KW to 30KW‌ to meet varying demands.

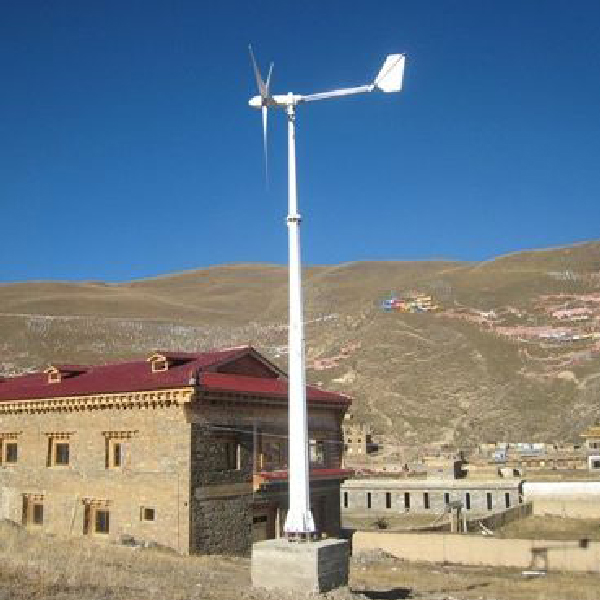

Ideal for remote areas without grid access, island communities, and industrial sites with unstable power supply, this turbine delivers ‌1.3 times the annual energy output‌ of comparable models.

Technical specification

Model	GH-1KW	GH-2KW	GH-3KW
Performance
Rated Power	1000W	2000W	3000W
Start Wind Speed	3m/s(6.72mph)	3m/s(6.72mph)	3m/s(6.72mph)
Rated Wind Speed	9m/s(20.1mph)	10m/s(22.4mph)	9m/s( 20.13 mph)
Working Wind Speed	4-25m/s(8.96-56 mph)	3-25m/s(6.72-56 mph)	4-25m/s(8.95-56 mph)
Safety Wind Speed	50m/s(112mph)	40m/s(89.6mph)	50m/s(111.85mph)
Physical Parameters
Blades Rotor Diameter	2.8M(9.2ft)	3.2M(10.50ft)	4.6M(15.1ft)
Blades Material &Quantity	FRP /3PCS	FRP /3PCS	Reinforced fibreglass
Top Weight	46kg	68kg	130kg
Tower Height	6m(19.68ft.)	6m(19.68ft.)	8m, 12m available
Generator Parameters
Generator Type	Permanent Magnet Generator	Permanent Magnet Generator	Direct-drive permanent magnet generator 3-phase AC PM
Rated Speed	360RPM	400RPM	240RPM
Option Voltage	24-220VAC	24-350VAC	DC48v-DC380v
Protection Grade	IP54	IP54	IP54

Model	GH-1KW	GH-2KW	GH-3KW	GH-5KW	GH-10KW	GH-20KW	GH-30KW
Performance
Rated Power	1000W	2000W	3000W	5000W	10000W	20000W	30000W
Start Wind Speed	3m/s(6.72mph)	3m/s(6.72mph)	3m/s(6.72mph)	3m/s(6.72mph)	3m/s(6.72mph)	3m/s(6.72mph)	3m/s(6.72mph)
Rated Wind Speed	9m/s(20.1mph)	10m/s(22.4mph)	9m/s( 20.13 mph)	10m/s(22.4mph)	10m/s(22.4mph)	10m/s(22.4mph)	10m/s(22.4mph)
Working Wind Speed	4-25m/s(8.96-56 mph)	3-25m/s(6.72-56 mph)	4-25m/s(8.95-56 mph)	4-25m/s(8.96-56 mph)	4-25m/s (6.72-56 mph)	4-25m/s (8.96-56 mph)	4-25m/s (8.96-56 mph)
Safety Wind Speed	50m/s(112mph)	40m/s(89.6mph)	50m/s(111.85mph)	50m/s(112mph)	50m/s(112mph)	50m/s(112mph)	50m/s(112mph)
Physical Parameters
Blades Rotor Diameter	2.8M(9.2ft)	3.2M(10.50ft)	4.6M(15.1ft)	5.4M(17.7ft)	7M(22.97ft)	10M(32.8ft)	5.885M(19.3ft)
Blades Material &Quantity	FRP /3PCS	FRP /3PCS	Reinforced fibreglass	FRP /3PCS	FRP /3PCS	FRP /3PCS	FRP /3PCS
Top Weight	46kg	68kg	130kg	150kg	650kg	1200kg	1500kg
Tower Height	6m(19.68ft.)	6m(19.68ft.)	8m, 12m available	8m(26.24ft.)	12m(39.36ft.)	18m(59.04ft.)	18m(59.04ft.)
Generator Parameters
Generator Type	Permanent Magnet Generator	Permanent Magnet Generator	Direct-drive permanent magnet generator 3-phase AC PM	Permanent Magnet Generator	Permanent Magnet Generator	Direct-drive permanent magnet generator 3-phase AC PM	Permanent Magnet Generator
Rated Speed	360RPM	400RPM	240RPM	250RPM	250RPM	240RPM	180RPM
Option Voltage	24-220VAC	24-350VAC	DC48v-DC380v	24-220VAC	120-500VAC	DC48v-DC380v	240-500VAC
Protection Grade	IP54	IP54	IP54	IP54	IP54	IP54	IP54
