Solar Gel Battery Long Life Deep Cycle 100AH-3000AH

The DC Series deep cycle batteries are designed for frequent cyclic charging and discharging scenarios due to their exceptional high integrity and reliability. The battery's reinforced grid structure, thickened plates, and special active materials are innovations that enable it to handle the rigors of repeated deep discharges. The DC series battery has a significantly longer cycle life of 30% compared to the backup series, an advantage that shows promise for a wide range of applications in renewable energy storage, such as solar and wind, mobile devices, medical equipment, and cable television systems.

product details

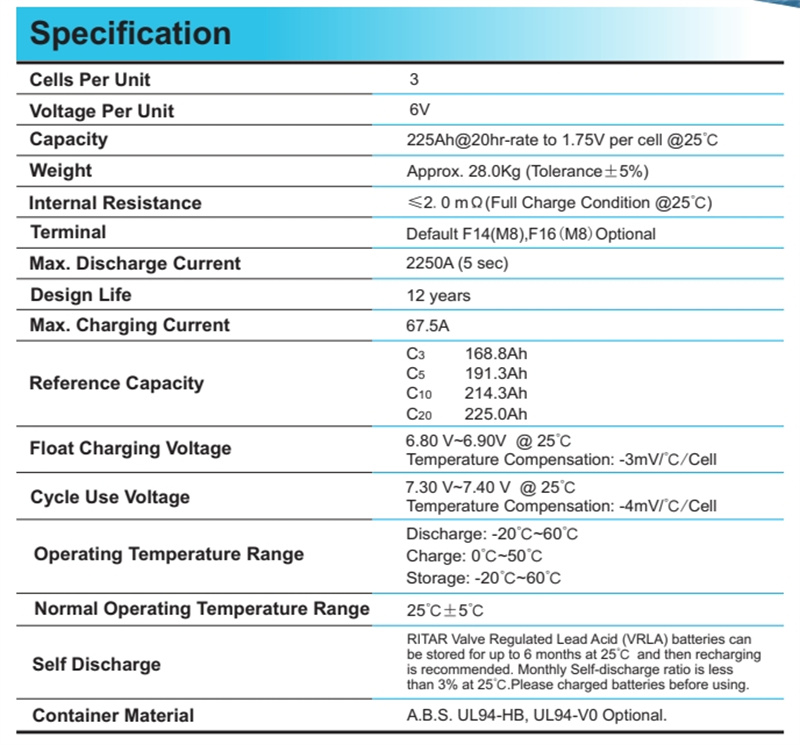

Technical specification

Advantages

1. Reliability and stability: Use a hidden independent valve design to effectively avoid safety valve blockage. Colloidal batteries have a high degree of reliability and stability, which ensures that new energy wind turbines operate stably in harsh environmental conditions.

2. High energy density: The high energy density of colloidal batteries provides more power, enabling new energy wind turbines to operate more efficiently.

3. Long service life: The long service life of colloidal batteries reduces the frequency of battery replacement, thus reducing maintenance costs. The positive grid adopts a high grid ratio design to extend the battery life.

4. Strong adaptability: Colloidal batteries are highly adaptable and can operate stably in different environments and climatic conditions.

5. Good safety: Use a special patented alloy formula, and the grid has stronger corrosion resistance. colloidal batteries have good safety performance, can effectively prevent fire and other accidents.

6. Environmentally friendly: colloidal battery is an environmentally friendly type of battery that does not pollute the environment.

7. Use high temperature and high humidity curing process to ensure life, capacity and batch consistency.

8. The ear hanging process design has high consistency in plate curing and drying.

Product parameters

8. The ear hanging process design has high consistency in plate curing and drying.

Battery model	Rated voltage （V）	Rated capacity C20（Ah）	Terminal options

DC12-26	12	26	F3(M5) / F13-BP(M5)/T24(M5)
DC12-26S	12	26	F7(M8) / F11(M6)
DC12-28S	12	28	F7(M8) / F11(M6)
DC6-180	6	180	F12(M8)
DC6-200	6	200	F16(M8) / F14(M8)
DC6-225	6	225	F16(M8) / F14(M8)
DC6-225S	6	225	F14(M8)
DC12-40	12	40	F4(M5) / F11(M6)
DC12-40A	12	40	F4(M5) / F11(M6)
DC12-55	12	55	F15(M6) / F11(M6)/L3
DC12-55A	12	55	F15(M6) / F11(M6)/L3
DC12-65	12	65	F5(M8) / F11(M6)
DC12-80	12	80	F5(M8) / F11(M6)
DC12-100S	12	100	F15(M6) / F12(M8)/L4
DC12-100SA	12	100	F15(M6) / F12(M8)/L4
DC12-100	12	100	F5(M8) / F12(M8)/L7
DC12-100A	12	100	F5(M8) / F12(M8)/L7
DC12-100H	12	100	F5(M8) / F12(M8)/L7
DC12-120	12	120	F5(M8) / F12(M8)
DC12-120A	12	120	F5(M8) / F12(M8)
DC12-120S	12	114	F5(M8) / F12(M8)/L7
DC12-120SA	12	114	F5(M8) / F12(M8)/L7
DC12-134	12	134	F5(M8) / F12(M8)
DC12-145	12	145	F5(M8) / F12(M8)
DC12-150	12	150	F5(M8) / F12(M8)
DC12-150A	12	150	F5(M8) / F12(M8)

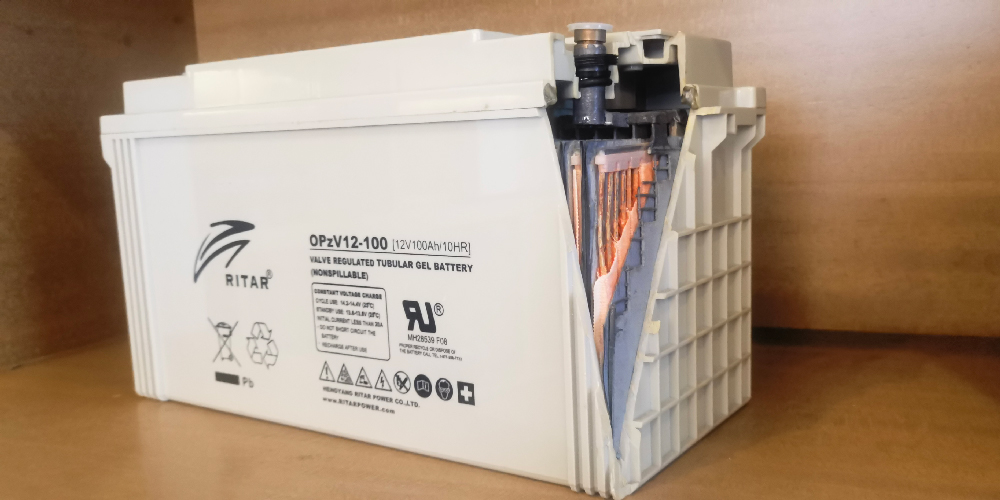

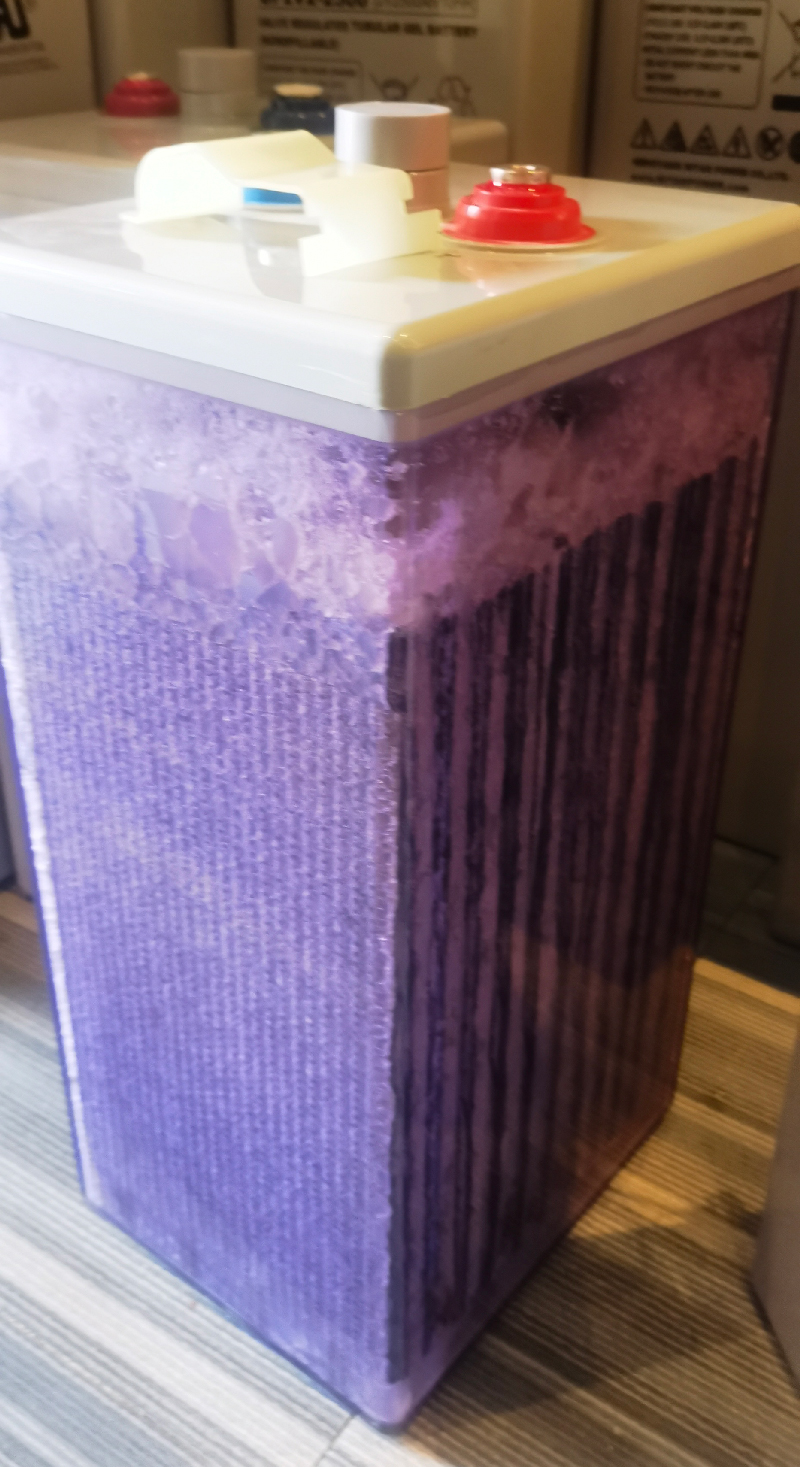

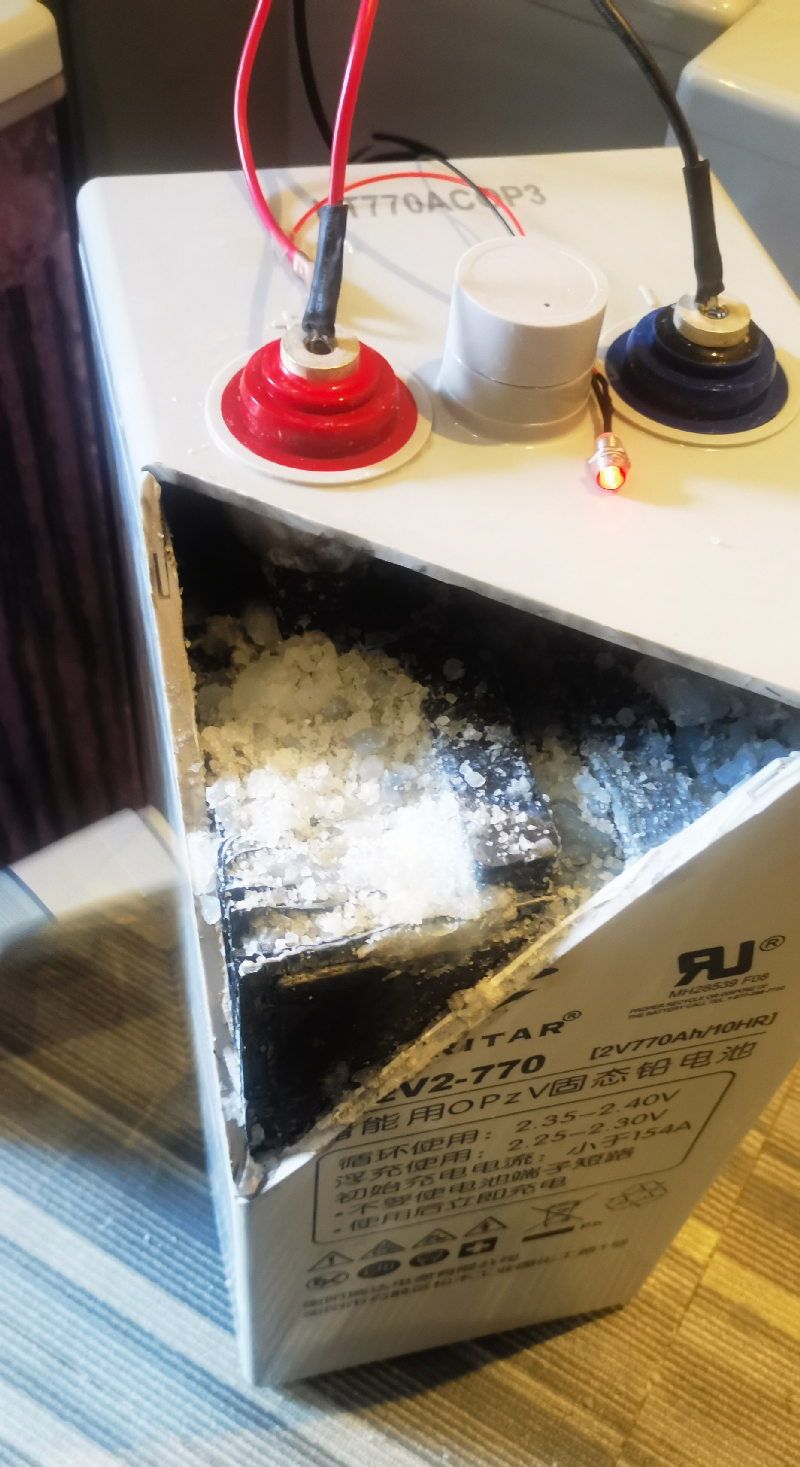

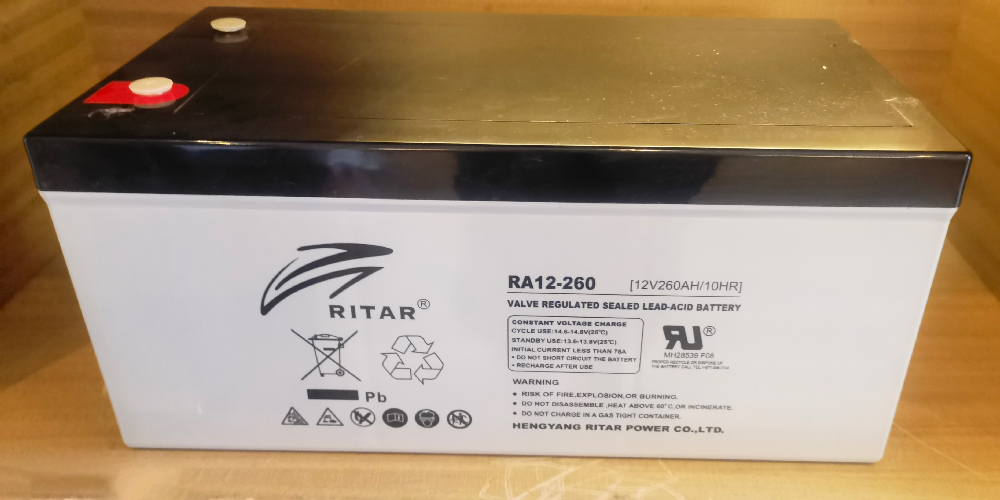

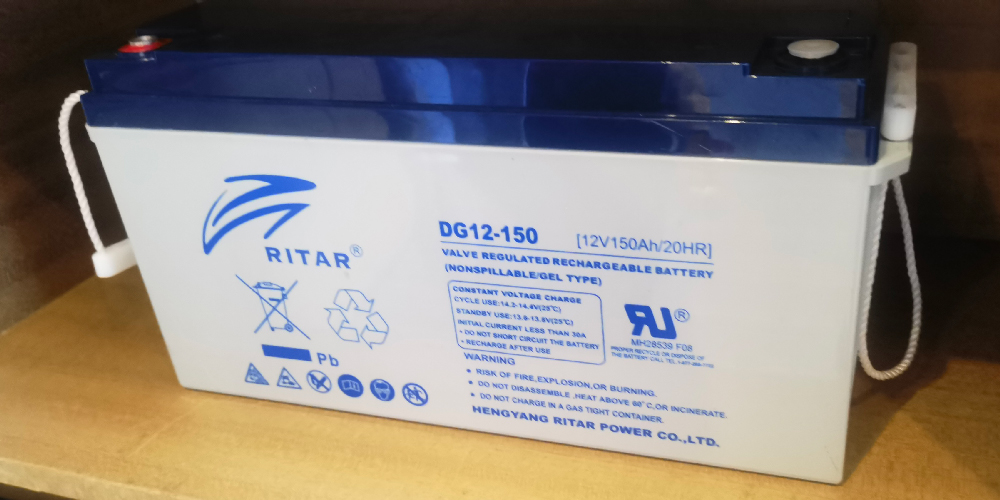

Product Display
