0.75kW-5000kW Low Speed Smooth Torque Permanent Magnet Synchronous Motor.

TYP series high-efficiency permanent magnet inverter synchronous motors must be used in conjunction with permanent magnet motor inverters. The rotor of this series of motors is built-in permanent magnet structure, and the special design of different alternating and straight axial magnetic circuits makes this series of motors have a certain convex pole torque. Therefore, the frequency converter needs to control the work with the maximum torque/current ratio control mode, so that this series of motors have high power factor in the whole speed regulation range, small working current and low copper consumption.

The rotational speed of TYP series high-efficiency permanent magnet frequency conversion synchronous motor is synchronized with the rotating magnetic field of the stator, there is no rotational difference, which saves the rotational power, and makes TYP series high-efficiency permanent magnet frequency conversion synchronous motor have high efficiency in the whole speed range, and the energy-saving effect is obvious.

Our company is equipped with special control cabinet for this series of products, which can be customized according to user requirements.

    Contact us
    product details

    Application

    TYP series high-efficiency permanent magnet frequency conversion synchronous motors are widely used in injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food machinery, cement pipe making machines, plastic extruders, wire drawing machines and pharmaceutical equipment.
    Application

    Part of the product model parameters

    Part-of-the-product-model-parameters

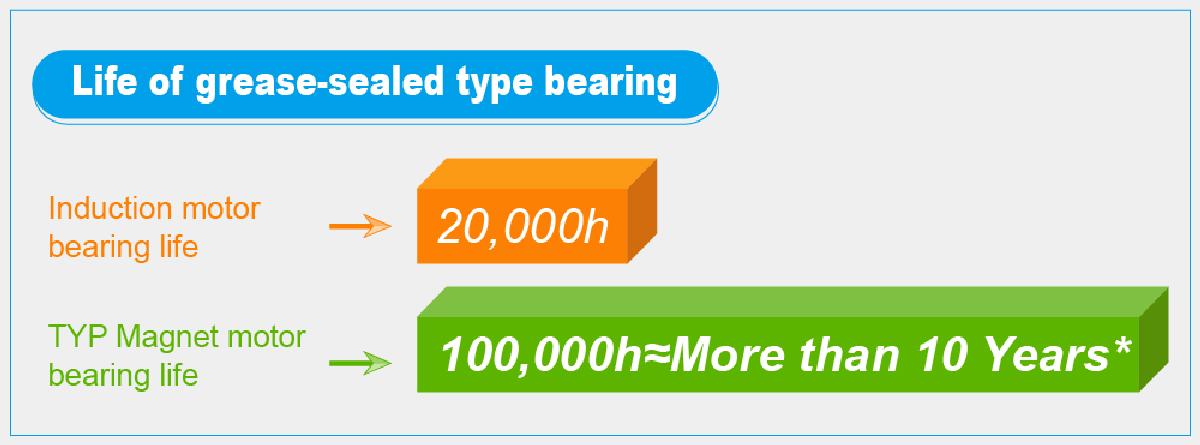

    Maximum radial load-100,000 hours-Fr (kN)

    Frame

    1000 rpm

    1500 rpm

    3000 rpm

    L

    L/2

    L

    L/2

    L

    L/2

    132S

    1,4

    1,6

    0,9

    1

    0,9

    1

    132M

    1,4

    1,6

    0,9

    1

    0,9

    1

    132M/L

    1,4

    1,6

    0,9

    1

    0,9

    1

    160M

    1,9

    2,1

    1,2

    1,4

    1,2

    1,4

    160L

    1,9

    2,1

    1,2

    1,4

    1,2

    1,4

    180M

    2,5

    2,8

    1,7

    1,9

    1,7

    1,9

    180L

    2,6

    2,8

    1,7

    1,9

    1,7

    1,9

    200M

    3

    3,3

    2

    2,2

    2

    2,2

    200L

    3

    3,3

    2

    2,2

    2

    2,2

    225S/M

    4,4

    4,9

    2

    2,2

    2

    2,2

    250S/M

    4,4

    4,8

    3

    3,3

    3

    3,3

    280S/M

    4,4

    4,8

    2,7

    2,9

    2,7

    2,9

    315S/M

    4,9

    5,4

    2,5

    2,7

    2,5

    2,7
    If you need more information, please contact us.

    Attributes and advantages of the GDM Magnet motor

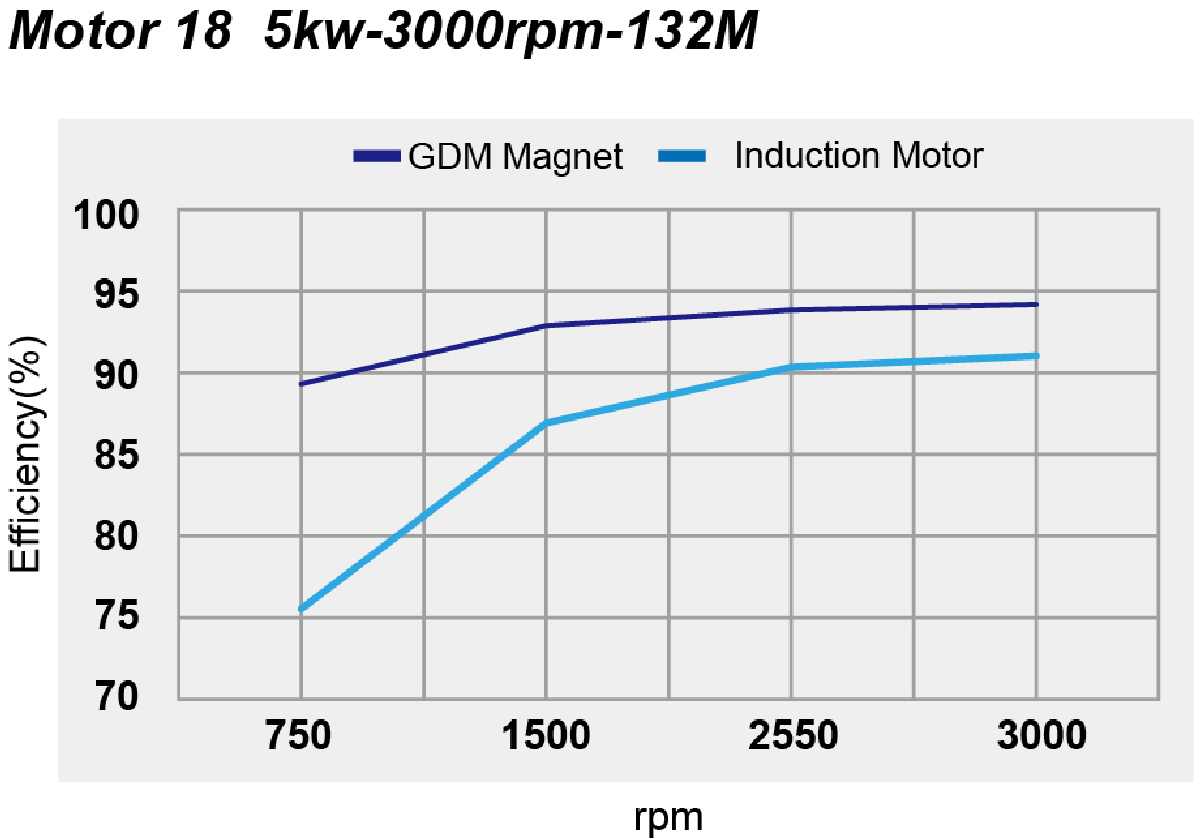

    Superior efficiency regardless of speed or load GDM Magnet motors present superior efficiency regardless of speed or load, saving up to 30% in comparison to induction motors driven by frequency inverters.

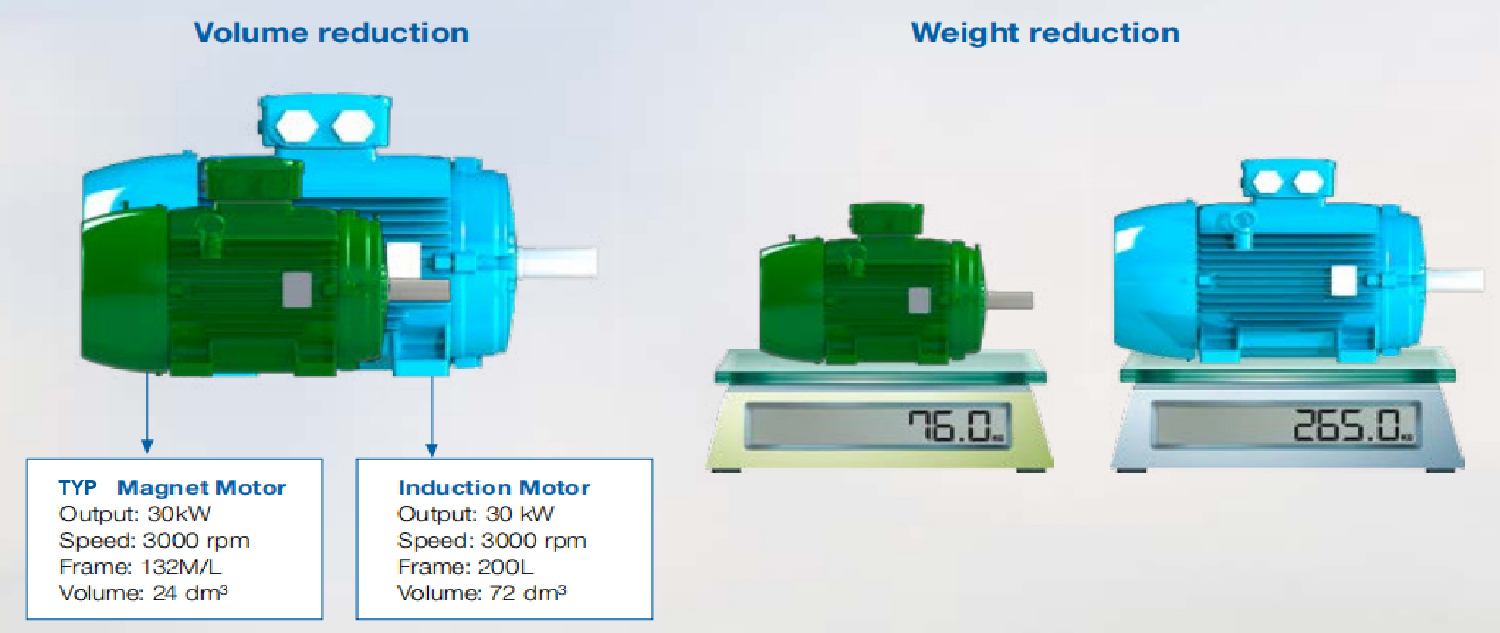

    Details-ImagesDetails-Images

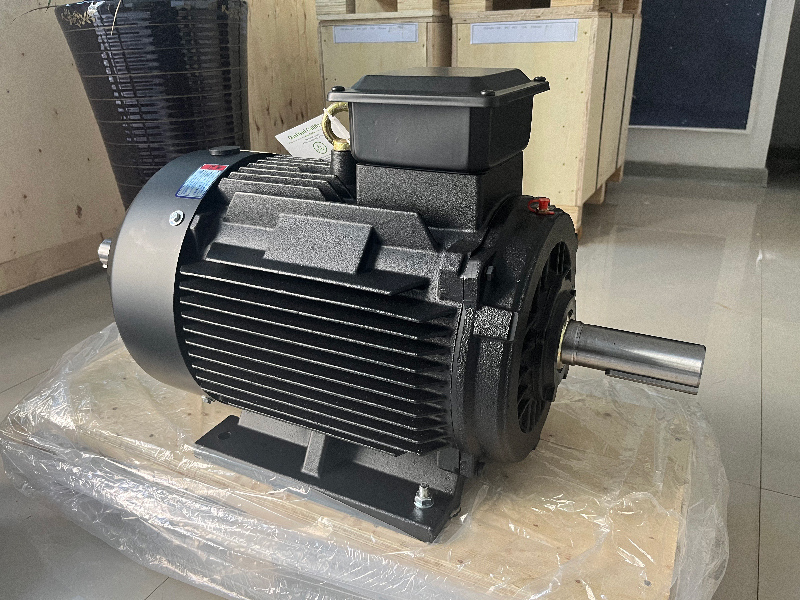

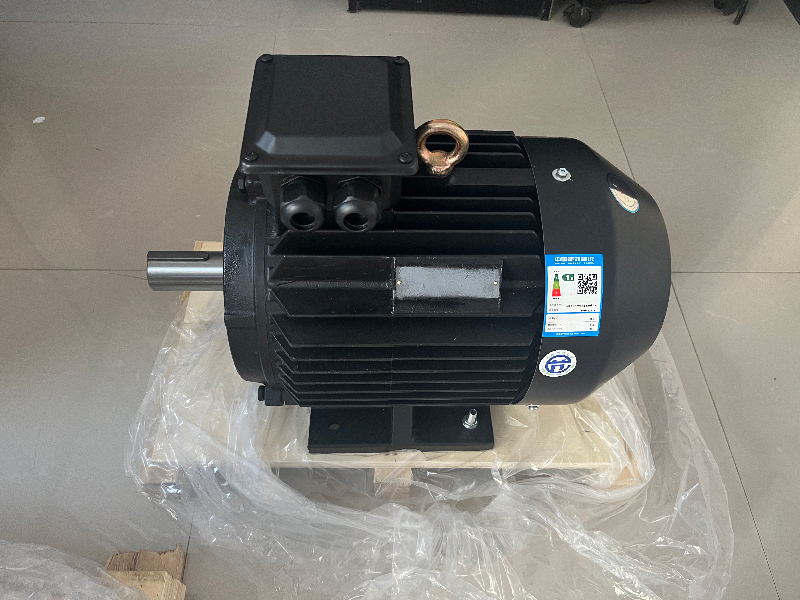

    Product Display

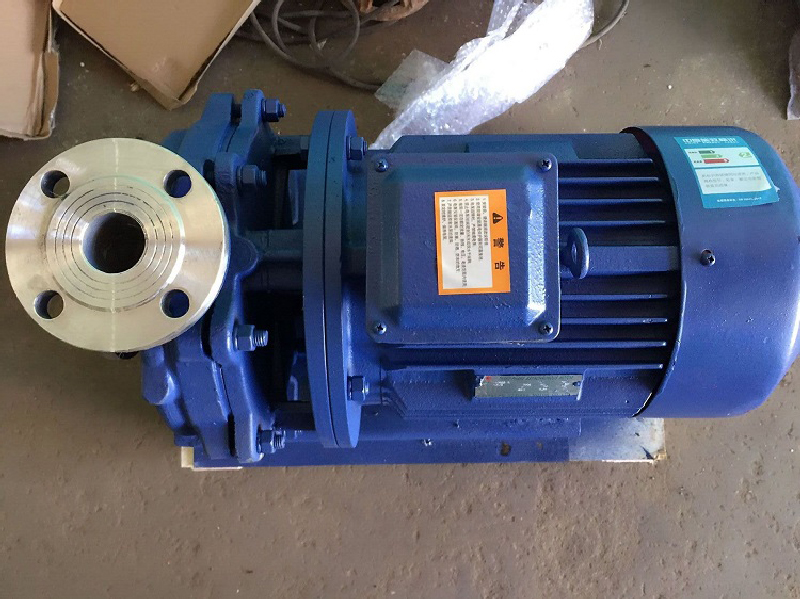

    • Product-Display1
